MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:2008+ROHS D/C:20000
FDMS2380, FDMS2627, FDMS2672 Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor (VA)
Package Cooled: 2008+ROHS
D/C: 20000
Description: MOSFET N-CH 200V 3.7A POWER56
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDM 100-0045SP
File Size: 46537 KB
Manufacturer:
Download : Click here to Download

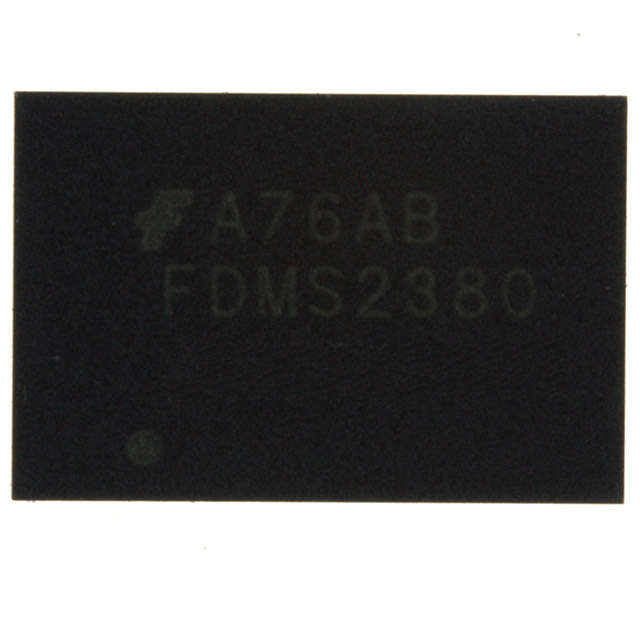

| Technical/Catalog Information | FDMS2380 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Package / Case | 18-QFN |
| Mounting Type | Surface Mount |
| Type | Low Side |
| Voltage - Supply | 6 V ~ 26 V |
| On-State Resistance | 30 mOhm |
| Current - Output / Channel | 5A |
| Current - Peak Output | - |
| Packaging | Digi-Reel? |
| Input Type | Non-Inverting |
| Number of Outputs | 2 |
| Operating Temperature | -40°C ~ 160°C |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMS2380 FDMS2380 FDMS2380DKR ND FDMS2380DKRND FDMS2380DKR |
The FDMS2380 is an intelligent low side driver with built inrecirculation and demagnetization circuits designedspecifically for driving inductive loads. The inputs areCMOS compatible. A separate diagnostic signal for eachchannel provides the system with an indication of theoperation of the solenoid or the presence of a protectionfault condition. Built-in Over-voltage, Over-current, Overtemperaturecircuits protect the device from theseconditions. Additional diagnostic circuitry is included fordetecting Open Load, Under-voltage and output groundfault conditions. The FDMS2380 contains two independentintelligent low side solenoid drivers.
| Product | Product status | Eco Status | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|
| FDMS2380 | Lifetime Buy | PQFN 8x12 | 18 | TAPE REEL | MLP18A | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: FDMS2380 Line 3: &R |
Package marking information for product FDMS2380 is available. Click here for more information . |
| Technical/Catalog Information | FDMS2672 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 200V |
| Current - Continuous Drain (Id) @ 25° C | 3.7A |
| Rds On (Max) @ Id, Vgs | 77 mOhm @ 3.7A, 10V |
| Input Capacitance (Ciss) @ Vds | 2315pF @ 100V |
| Power - Max | 2.5W |
| Packaging | Cut Tape (CT) |
| Gate Charge (Qg) @ Vgs | 42nC @ 10V |
| Package / Case | Power56 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDMS2672 FDMS2672 FDMS2672CT ND FDMS2672CTND FDMS2672CT |
