FDMS8680, FDMS8692, FDMS8692 FSC 200 QFN 2005+ -

Table of contents:
Info of FDMS8680
Info of FDMS8692
Info of FDMS8692 FSC 200 QFN 2005+ -

FDMS8680, FDMS8692, FDMS8692 FSC 200 QFN 2005+ - Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:QFN8 D/C:07+

FDMS8680, FDMS8692, FDMS8692 FSC 200 QFN 2005+ - Datasheet download

Five Points

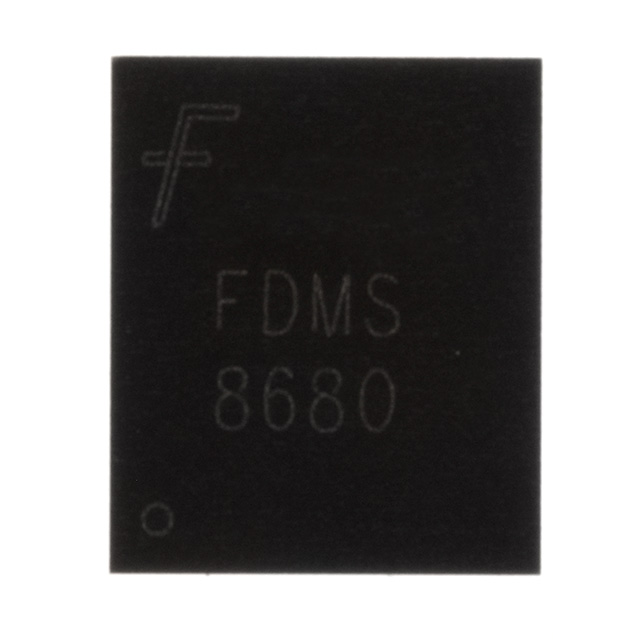

Part Number: FDMS8680

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: QFN8

D/C: 07+

Description: MOSFET N-CH 30V 12A POWER56

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDMS8680 Parameters

Technical/Catalog Information	FDMS8680
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	14A
Rds On (Max) @ Id, Vgs	7 mOhm @ 14A, 10V
Input Capacitance (Ciss) @ Vds	1590pF @ 15V
Power - Max	2.5W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	26nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS8680 FDMS8680 FDMS8680DKR ND FDMS8680DKRND FDMS8680DKR

FDMS8692 Parameters

Technical/Catalog Information	FDMS8692
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	12A
Rds On (Max) @ Id, Vgs	9 mOhm @ 12A, 10V
Input Capacitance (Ciss) @ Vds	1265pF @ 15V
Power - Max	2.5W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	21nC @ 10V
Package / Case	Power56
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDMS8692 FDMS8692 FDMS8692DKR ND FDMS8692DKRND FDMS8692DKR
