FDT434P, FDT434P/434, FDT434P-NL

Table of contents:
Info of FDT434P
Info of FDT434P/434
Info of FDT434P-NL

FDT434P, FDT434P/434, FDT434P-NL Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:SOT223 D/C:04+;

FDT434P, FDT434P/434, FDT434P-NL Datasheet download

Five Points

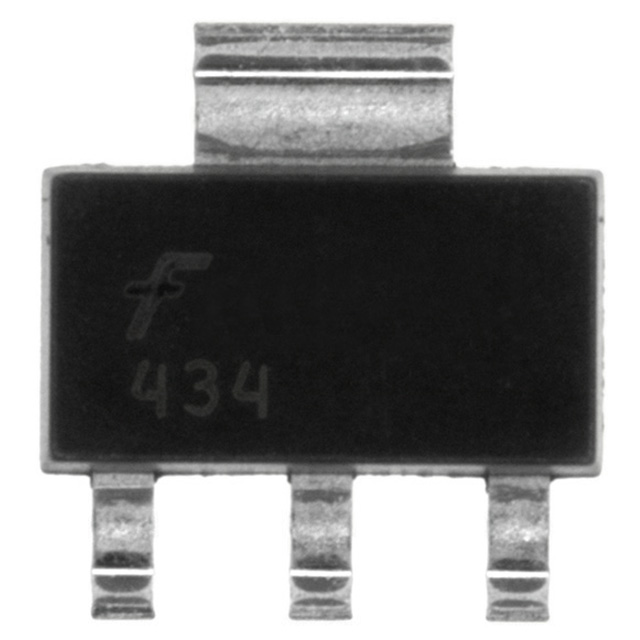

Part Number: FDT434P

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: SOT223

D/C: 04+;

Description: MOSFET P-CH 20V 6A SOT-223

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDT434P Parameters

Technical/Catalog Information	FDT434P
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	6A
Rds On (Max) @ Id, Vgs	50 mOhm @ 6A, 4.5V
Input Capacitance (Ciss) @ Vds	1187pF @ 10V
Power - Max	1.1W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	19nC @ 4.5V
Package / Case	SOT-223, SC-73, TO-261 (3 Leads + Tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDT434P FDT434P FDT434PCT ND FDT434PCTND FDT434PCT

FDT434P General Description

This P-Channel 2.5V specified MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.

FDT434P Maximum Ratings

Symbol	Parameter	Ratings	Units
V_DSS	Drain-Source Voltage	-20	V
V_GSS	Gate-Source Voltage	±8	V
I_D	Drain Current Continuous (Note 1a) Pulsed	-60	A
I_D	Drain Current Continuous (Note 1a) Pulsed	-30	A
P_D	Power Dissipation for Single Operation (Note 1a) (Note 1b) (Note 1c)	3.0	W
		1.3
		1.1
T_J, T_STG	Operating and Storage Junction Temperature Range	55 to +150	°C

FDT434P Features

• 5.5 A, 20 V. R_DS(ON) = 0.050 Ω @ V_GS = 4.5 V
R_DS(ON) = 0.070 Ω @ V_GS = 2.5 V.
• Low gate charge (13nC typical)
• High performance trench technology for extremely low R_DS(ON).
• High power and current handling capability in a widely used surface mount package.

FDT434P Typical Application

• Low Dropout Regulator
• DC/DC converter
• Load switch
• Motor driving

FDT434P Connection Diagram
