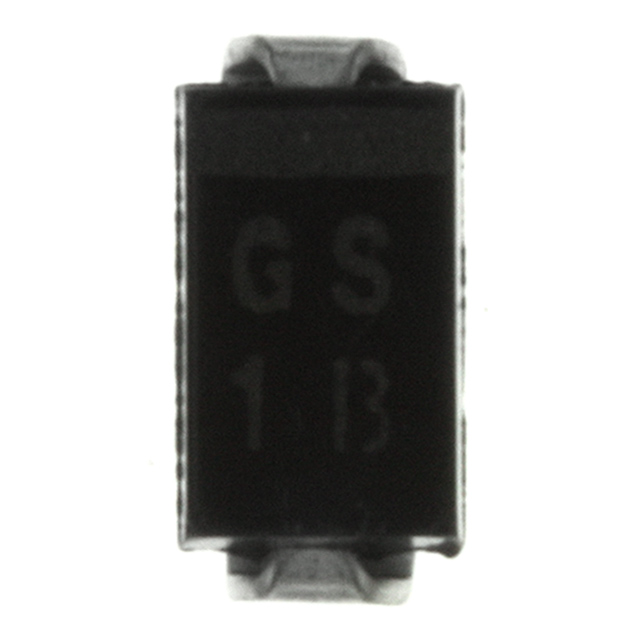

GS1AT1R, GS1B, GS1B-TP Datasheet download
Category: Discrete Semiconductor Products
MFG: Micro Commercial Co (VA)
Package Cooled: SMA
D/C: 05+
Description: DIODE STD REC 1A 100V DO214AC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: GS100T300
File Size: 93441 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: GS1B
File Size: 634240 KB
Manufacturer: DCCOM [Dc Components]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: GS100T300
File Size: 93441 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
| SYMBOL | GS1A | GS1B | GS1D | GS1G | GS1J | GS1K | GS1M | UNITS | |
| Maximum Repetitive Peak Reverse Voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | Volts |
| Maximum RMS Voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | Volts |
| Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | Volts |
| Maximum Average Forward Rectified Current at TL = 100 | I(AV) | 1.0 | Amps | ||||||
| on rated load (JEDEC Method) 8.3ms single half sine-wave superimposed Peak Forward Surge Current |
IFSM | 30 | Amps | ||||||
| Maximum Instantaneous Forward Voltage at 1.0A | VF | 1.1 | Volts | ||||||
| Maximum DC Reverse Current TA = 25 at Rated DC Blocking Voltage TA = 125 |
IR | 5 50 |
A | ||||||
| Typical Junction Capacitance (NOTE 1) | CJ | 12 | pF | ||||||
| Maximum Thermal Resistance (NOTE 2) | RJA RJL |
30 75 |
/W | ||||||
| Operating and Storage Temperature Range | TJ, TSTG | -55 to +150 | |||||||
For surface mount applications
Glass passivated junction
Low profile package
Built-in strain relief
Easy pick and place
Low forward voltage drop
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
High temperature soldering:
250 /10 seconds at terminals
| Technical/Catalog Information | GS1B-TP |
| Vendor | Micro Commercial Co (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 10A @ 100V |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Packaging | Cut Tape (CT) |
| Capacitance @ Vr, F | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | GS1B TP GS1BTP GS1B TPCT ND GS1BTPCTND GS1B-TPCT |
