HIP2100, HIP2100IB, HIP2100IBT

Table of contents:
Info of HIP2100
Info of HIP2100IB
Info of HIP2100IBT

HIP2100, HIP2100IB, HIP2100IBT Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:SOP8 D/C:N/A

HIP2100, HIP2100IB, HIP2100IBT Datasheet download

Five Points

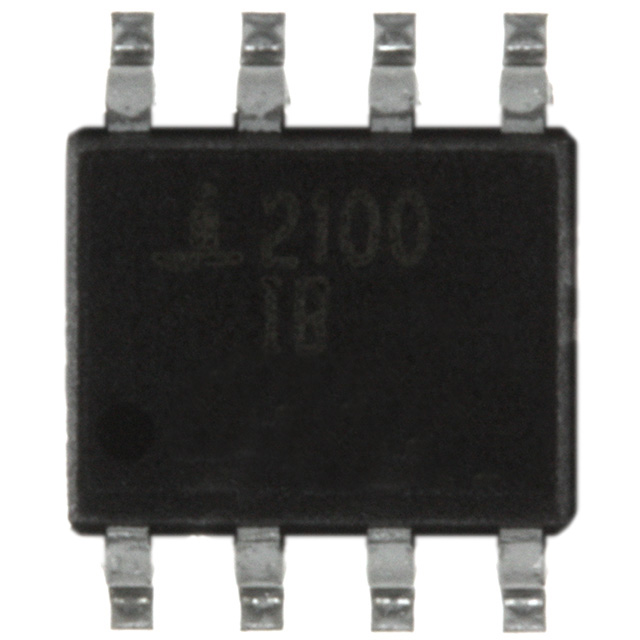

Part Number: HIP2100IB

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: SOP8

D/C: N/A

Description: IC DRIVER HALF-BRIDGE 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

HIP2100 General Description

The HIP2100 is a high frequency, 100V Half Bridge N-Channel power MOSFET driver IC. The low-side and high-side gate drivers are independently controlled and matched to 8ns. This gives the user maximum flexibility in dead-time selection and driver protocol. Undervoltage protection on both the low-side and high-side supplies force the outputs low. An on-chip diode eliminates the discrete diode required with other driver ICs. A new level-shifter topology yields the low-power benefits of pulsed operation with the safety of DC operation. Unlike some competitors, the high-side output returns to its correct state after a momentary undervoltage of the high-side supply.

HIP2100 Maximum Ratings

Supply Voltage, V_DD, V_HB-V_HS . . . . . . . . . . . . . . . . . . -0.3V to 18V
LI and HI Voltages . . . . . . . . . . . . . . . . . . . . . . . .-3V to V_DD +0.3V
Voltage on LO . . . . . . . . . . . . . . . . . . . . . . . . . .-0.3V to V_DD +0.3V
Voltage on HO . . . . . . . . . . . . . . . . . . . . . . V_HS -0.3V to V_HB +0.3V
Voltage on HS (Continuous) . . . . . . . . . . . . . . . . . . . . -1V to 110V
Voltage on HB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +118V
Average Current in VDD to HB diode . . . . . . . . . . . . . . . . . . 100mA
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 1 (1kV)

HIP2100 Features

• Drives N-Channel MOSFET Half Bridge
• Space Saving SO8 Package
• Bootstrap Supply Max Voltage to 116VDC
• On-Chip 1W Bootstrap Diode
• Fast Propagation Times Needed for Multi-MHz Circuits
• Drives 1000pF Load at 1MHz with Rise and Fall Times of Typically 10ns
• CMOS Input Thresholds for Improved Noise Immunity
• Independent Inputs for Non-Half Bridge Topologies
• No Start-Up Problems
• Outputs Unaffected by Supply Glitches, HS Ringing Below Ground, or HS Slewing at High dv/dt
• Low Power Consumption
• Wide Supply Range
• Supply Undervoltage Protection
• 3 Output Resistance

HIP2100 Typical Application

• Telecom Half Bridge Power Supplies
• Avionic DC-DC Converters
• Two-Switch Forward Converters
• Active Clamp Forward Converters

HIP2100 Connection Diagram

HIP2100IB Parameters

Technical/Catalog Information	HIP2100IB
Vendor	Intersil
Category	Integrated Circuits (ICs)
Configuration	Half Bridge
Voltage - Supply	9 V ~ 14 V
Current - Peak	2A
Delay Time	20ns
Package / Case	8-SOIC (3.9mm Width)
Packaging	Tube
Number of Outputs	2
Input Type	PWM
Number of Configurations	1
Operating Temperature	-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)	114V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	HIP2100IB HIP2100IB

HIP2100IBT Parameters

Technical/Catalog Information	HIP2100IBT
Vendor	Intersil
Category	Integrated Circuits (ICs)
Configuration	Half Bridge
Voltage - Supply	9 V ~ 14 V
Current - Peak	2A
Delay Time	20ns
Package / Case	8-SOIC (3.9mm Width)
Packaging	Tape & Reel (TR)
Number of Outputs	2
Input Type	PWM
Number of Configurations	1
Operating Temperature	-40°C ~ 125°C
High Side Voltage - Max (Bootstrap)	114V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	HIP2100IBT HIP2100IBT
