HIP0051

Features:

• Eight Open Drain - NDMOS Low Side Drivers Each Capable of 250mA
• High Voltage Power BiMOS with Low Idle and Standby Current
• Over-Voltage Clamp Protection
     - Each Output . . . . . . . . . . . . . . . . . . . . . . . 50V Typical
• Serial Data Input, Parallel Output Power Drive
• Common Enable for Output Drivers and Data Storage Register
• -40 to 85 Operating Range


Application

• Automotive and Industrial Systems
• Solenoids, Relays and Lamp Drivers
• Logic and P Controlled Drivers
• Robotic Controls

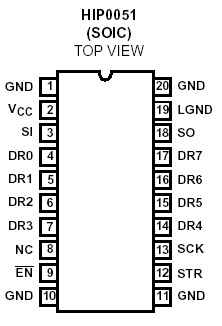

Pinout




Specifications

Output Voltage, V_OUT (Note 1). . . . . . . . . . . . . . . . . . .-0.3V to 40V
Input Voltage, V_IN . . . . . . . . . . . . . . . . . . . . . . -0.3V to V_CC + 0.3V
Logic Supply Voltage, V_CC. . . . . . . . . . . . . . . . . . . . . . -0.3V to +7V
Output Clamp Energy, 25 (5ms Pulse). . . . . . . . . . . . . . .. . 75mJ
Continuous Output Load Current, ILOAD (Each Output) . . . .  0.25A
Continuous Output Current, ILOAD (All Outputs ON, Note 2).  1.69A
Peak Output Current
Each Output, Other Outputs OFF . . . . . . . . . . . . . . . . . . .. .  . . ±2A
Peak Avalanche Current (3ms duration) . . . . . . . . . . . . . . ..  . . . 1A


Description

The HIP0051 is a logic controlled, eight channel Octal Low Side Power Driver. As shown in the Block Diagram, the outputs are controlled via the serial data interface which allows the data to be shifted out, allowing control of other cascaded serial devices.

The HIP0051 is fabricated in a Power BiMOS IC process, and is intended for use in automotive and other applications having a wide range of temperature and electrical stress conditions. HIP0051 is particularly suited for driving lamps, displays, relays, and solenoids in applications where low operating power, high breakdown voltage, and high output current at high temperature is required.
