HIP0060

Features:

• Quad NDMOS Output Drivers in a High Voltage Power BiMOS Process
• Over-Stress Protection - Each Output
      - Over-Current Limiting . . . . . . . . . . . . . . . . . .1.5A Min
      - Internal Zener Drain-to-Gate Over-Voltage Clamp
      Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50V Typ
      - Thermal Shutdown Protection
      - Open-Load Detection
• Low Quiescent Current . . . . . . . . . . . . . . . . 10mA Max
• Serial Diagnostic Link with SPI Bus
• Diagnostic Interrupt Fault Flag
• 5V CMOS Logic Input Control
• Common Reset for Fault Bits and Output Drivers
• Ambient Operating
      Temperature Range. . . . . . . . . . . . . . . . -40oC to 125oC


Application

• Automotive and Industrial Systems
• Fuel Injection Drivers
• Solenoids, Relays and Lamp Drivers
• Logic and P Controlled Drivers
• Robotic Controls

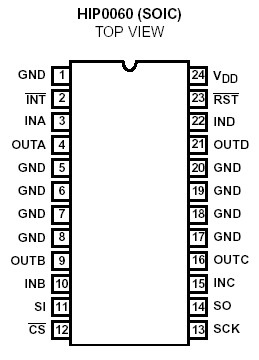

Pinout




Specifications

Max Output Voltage, V_OUT (Note 2) . . . . . . . . . . . . . . . . . . . . . V_OC
Max Output Load Current, I_LOAD (Per Output, Note 3) . . . . . . . . I_CL
Logic Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . .  -0.3V to 7V
Logic Supply Voltage, VDD. . . . . . . . . . . . . . . . . . . . . . -0.3V to +7V


Description

The HIP0060 is a 5V logic controlled Quad Low Side Power Driver. The outputs are individually protected for over-current (OC), over-temperature (OT) and over-voltage (OV). If an OC short circuit in the output load is sensed (IS) in one output power driver, that output current will be independently limited while the other outputs remain in operation. Over-current is limited by direct gate feedback. Over-voltage protection is provided by a drain-to-gate zener diode that clamps inductive switching pulses.

The HIP0060 output drivers are individually controlled through a Gate Control Latch. Temperature is sensed at each output. If a thermal fault exists, a status flag is set and the output is latched off. Open-load (OL) and over-temperature (OT) faults sets a status flag bit as diagnostic output to the SPI bus. For all fault bits (8), an ORed one-shot interrupt signal is output to the INT pin. An RST reset clears the fault flags and disables all outputs while active. The Serial Peripheral Interface (SPI) bus pins are the Serial Input (SI), Serial Output (SO), Serial Data Clock (SCK) and the Chip Select (CS).

The HIP0060 is fabricated in a Power BiMOS IC process, and is intended for use in automotive and other applications having a wide range of temperature and electrical stress conditions. HIP0060 is particularly suited for driving lamps, relays, and solenoids in applications where low operating power, high breakdown voltage, and higher output current at high temperatures is required.
