MFG:International Rectifier Category:Integrated Circuits (ICs) Package Cooled:ir D/C:dc05
IR30WQ06FN, IR3101, IR3103 Datasheet download
Category: Integrated Circuits (ICs)
MFG: International Rectifier
Package Cooled: ir
D/C: dc05
Description: PWR MOD 180W GATE DRIVER 11-SIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IR3009
File Size: 710374 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IR3101
File Size: 274744 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IR3009
File Size: 710374 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
| Technical/Catalog Information | IR3101 |
| Vendor | International Rectifier |
| Category | Integrated Circuits (ICs) |
| Configuration | Half Bridge |
| Voltage - Supply | 10 V ~ 20 V |
| Current - Peak | 2A |
| Delay Time | 30ns |
| Package / Case | 11-SIP (9 Leads) |
| Packaging | Tube |
| Number of Outputs | 2 |
| Input Type | Non-Inverting |
| Number of Configurations | 1 |
| Operating Temperature | -40°C ~ 150°C |
| High Side Voltage - Max (Bootstrap) | 500V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IR3101 IR3101 |

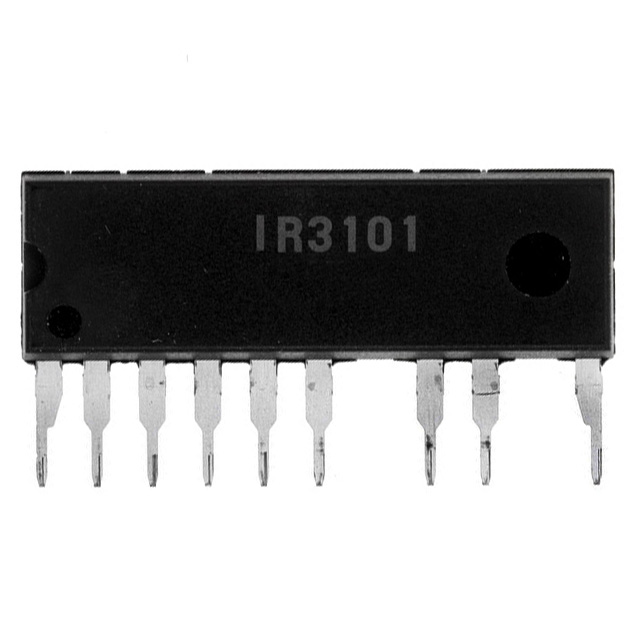

IR3101 is a gate driver IC integrated half bridge FredFET designed for sub 250W (heat-sink-less) motor drive applications. The sleek and compact single-in-line package is optimized for electronic motor control in appliance applications such as fans and compressors for refrigerators. The IR3101 offers an extremely compact, high performance half-bridge inverter, in a single isolated package for a very simple design for twophase and three-phase motor drivers.
Proprietary HVIC and latch immune CMOS technologies, along with the HEXFET® power FredFET® technology (HEXFET® with ultra-fast recovery body diode characteristics), enable efficient and rugged single package construction. Propagation delays for the high and low side power FredFETs are matched thanks to the advance IC technology.
| Parameters | Description | Max. Values | Units | |
| VDD | High voltage supply | 500 | V | |
| VB | High side floating supply | Vo + 25 | V | |
| PD | Package power dissipation @ TC 80 (per die) | 5.8 | W | |
| RthJC | Thermal resistance, junction to case | 12 | /W | |
| RthJA | Thermal resistance, junction to ambient (note 1) | 85 | /W | |
| VISO | Isolation Voltage (1 min) | 1500 | VRMS | |
| TJ | Junction temperature (Power Mosfet) | -40 to +150 | ||
| TS | Storage temperature | -40 to +150 | ||
| TL | Lead temperature (soldering, 10 seconds) | 300 | ||
| IO | Maximum current rating (note 2) | 1.6 | A | |
| IO | Continuous output current (VIN=5V, VCC=15V) | (TC = 100) | 1.3 | A |
| (TC = 25) | 2 | A | ||
| Technical/Catalog Information | IR3103 |
| Vendor | International Rectifier |
| Category | Integrated Circuits (ICs) |
| Configuration | Half Bridge |
| Voltage - Supply | 10 V ~ 20 V |
| Current - Peak | 0.7A |
| Delay Time | 300ns |
| Package / Case | 11-SIP (9 Leads) |
| Packaging | Tube |
| Number of Outputs | 2 |
| Input Type | Non-Inverting |
| Number of Configurations | 1 |
| Operating Temperature | -40°C ~ 150°C |
| High Side Voltage - Max (Bootstrap) | 500V |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IR3103 IR3103 |
The IR3103 is a gate driver IC integrated with a half bridge FredFET designed for motor drive applications up to 180W (heatsink-less). The sleek and compact single-in-line package is optimized for electronic motor control in appliance applications such as fans and compressors for refrigerators. The IR3103 offers an extremely compact, high performance half-bridge inverter in a single isolated package for two-phase and three-phase motor drivers.
Proprietary HVIC and latch immune CMOS technologies, along with the HEXFET® power FredFET technology (HEXFET® MOSFET with ultra-fast recovery body diode characteristics), enable efficient and rugged single package construction. Propagation delays for the high and low side power FredFETs are matched thanks to advanced IC technology.
Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute voltages referenced to COM. Power dissipation is measured under board mounted and still air conditions.
| Parameter | Description | Max. Value | Units |
| VDS | Drain to Source Blocking Voltage | 500 | V |
| VDD | DC Bus Supply Voltage (No Switching Operation) | 500 | V |
| IO (TA=25) | Continuous Output Current (1) | 0.7 | A |
| IO (TA=55) | Continuous Output Current (1) | 0.6 | A |
| IO (TA=25) | Pulsed Output Current (2) | 2.7 | A |
| Pd | Package Power Dissipation @TA 55(3) | 1.4 | W |
| VISO | Isolation Voltage (1min) | 1500 | VRMS |
| TJ | Junction Temperature (Power MOSFET) | -40 to +150 | |
| TS | Storage Temperature | -40 to +150 | |
| TL | Lead Temperature (soldering, 10 seconds) | 300 | |
| TS | Storage Temperature | -40 to +150 |
Note 1: See figure 3, fPWM=16kHz
Note 2: TP=100ms, other conditions as per Figure 3, fPWM=16kHz
Note 3: Single Device Operating
Absolute maximum ratings indicate sustained limits beyond which damage to the device may occur. All voltage parameters are absolute voltages referenced to COM.
| Symbol | Parameter | Min | Max | Units | Conditions |
| IBDF | Bootstrap Continuous Diode Forward Current | --- | 0.3 | A | TJ = 150, TA=55 |
| VB | High Side Floating Supply Absolute Voltage | -0.3 | 525 | V | |
| VO | High Side Floating Supply Offset Voltage | VB - 25 | VB +0.3 | V | |
| VCC | Low Side and Logic Fixed Supply Voltage | -0.3 | 25 | V | |
| VIN | Input Voltage LIN, HIN | VSS-0.3 | VCC+0.3V | V | |
| VSS | Logic Ground | VCC-25 | VCC+0.3V | V |
