General Description
IR3081 General Description
The IR3081 Control IC combined with an IR XPhaseTM Phase IC provides a full featured and flexible way to implement a complete VR 10.0 power solution. The "Control" IC provides overall system control and interfaces with any number of "Phase ICs" which each drive and monitor a single phase of a multiphase converter. The XPhaseTM architecture results in a power supply that is smaller, less expensive, and easier to design while providing higher efficiency than conventional approaches.
The IR3081 is intended for VRD or VRM/EVRD 10.0 applications that use external VCCVID/VTT circuits.
IR3081 Maximum Ratings
Operating Junction Temperature..........................................150
Storage Temperature Range...................................-65 to 150
ESD Rating.....................................HBM Class 1C JEDEC standard
IR3081 Features
·6 bit VR 10.0 compatible VID with 0.5% overall system accuracy
·Programmable Dynamic VID Slew Rate
·No Discharge of output capacitors during Dynamic VID step-down (can be disabled)
·+/-300mV Differential Remote Sense
·Programmable 150kHz to 1MHz oscillator
·Programmable VID Offset and Load Line output impedance
·Programmable Softstart
·Programmable Hiccup Over-Current Protection with Delay to prevent false triggering
·Simplified Powergood provides indication of proper operation and avoids false triggering
·Operates from 12V input with 9.1V Under-Voltage Lockout
·6.8V/5mA Bias Regulator provides System Reference Voltage
·Enable Input
·Small thermally enhanced 28L MLPQ package
·Programmable Dynamic VID Slew Rate
·No Discharge of output capacitors during Dynamic VID step-down (can be disabled)
·+/-300mV Differential Remote Sense
·Programmable 150kHz to 1MHz oscillator
·Programmable VID Offset and Load Line output impedance
·Programmable Softstart
·Programmable Hiccup Over-Current Protection with Delay to prevent false triggering
·Simplified Powergood provides indication of proper operation and avoids false triggering
·Operates from 12V input with 9.1V Under-Voltage Lockout
·6.8V/5mA Bias Regulator provides System Reference Voltage
·Enable Input
·Small thermally enhanced 28L MLPQ package

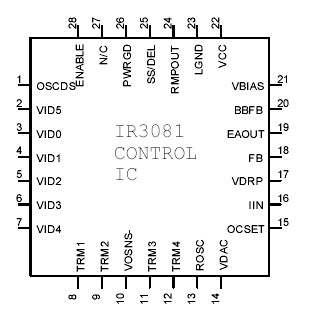

IR3081 Connection Diagram
IR3081
