Part Number: IR3080PbF
Description: The IR3080 Control IC combined with an IR XPhaseTM Phase IC provides a full featured and flexible way to imp...
- Table of contents:
IR3080PbF
-
Suppliers
DataSheet
General Description
IR3080PbF General Description
The IR3080 Control IC combined with an IR XPhaseTM Phase IC provides a full featured and flexible way to implement a complete VRD 10 power solution. The "Control" IC provides overall system control and interfaces with any number of "Phase ICs" which each drive and monitor a single phase of a multiphase converter. The XPhaseTM architecture results in a power supply that is smaller, less expensive, and easier to design while providing higher efficiency than conventional approaches.
The IR3080 is intended for desktop applications and includes the VCCVID and VRHOT functions required for proper system operation.
IR3080PbF Maximum Ratings
Operating Junction Temperature..... 150
Storage Temperature Range....... -65 to 150
ESD Rating ................ HBM Class 1C JEDEC standard
Storage Temperature Range....... -65 to 150
ESD Rating ................ HBM Class 1C JEDEC standard
IR3080PbF Features
• 6 bit VR10 compatible VID with 0.5% overall system accuracy
• 1 to X phases operation with matching phase ICs
• On-chip 700 VID Pull-up resistors with VID pull-up voltage input
• Programmable Dynamic VID Slew Rate
• No Discharge of output capacitors during Dynamic VID step-down (can be disabled)
• +/-300mV Differential Remote Sense
• Programmable 150kHz to 1MHz oscillator
• Programmable VID Offset and Load Line output impedance
• Programmable Softstart
• Programmable Hiccup Over-Current Protection with Delay to prevent false triggering
• Simplified Powergood provides indication of proper operation and avoids false triggering
• Operates from 12V input with 9.1V Under-Voltage Lockout
• 6.8V/5mA Bias Regulator provides System Reference Voltage
• 1.2V @ 150mA VCCVID Linear Regulator with Full Protection
• VCCVID Powergood with Programmable delay gates converter operation
• Programmable Converter Over-Temperature Detection and Output
• Small thermally enhanced 32L MLPQ package
• 1 to X phases operation with matching phase ICs
• On-chip 700 VID Pull-up resistors with VID pull-up voltage input
• Programmable Dynamic VID Slew Rate
• No Discharge of output capacitors during Dynamic VID step-down (can be disabled)
• +/-300mV Differential Remote Sense
• Programmable 150kHz to 1MHz oscillator
• Programmable VID Offset and Load Line output impedance
• Programmable Softstart
• Programmable Hiccup Over-Current Protection with Delay to prevent false triggering
• Simplified Powergood provides indication of proper operation and avoids false triggering
• Operates from 12V input with 9.1V Under-Voltage Lockout
• 6.8V/5mA Bias Regulator provides System Reference Voltage
• 1.2V @ 150mA VCCVID Linear Regulator with Full Protection
• VCCVID Powergood with Programmable delay gates converter operation
• Programmable Converter Over-Temperature Detection and Output
• Small thermally enhanced 32L MLPQ package
IR3009
PDF/DataSheet Download
- Datasheet: IR3009
- File Size: 710374 KB
- Manufacturer: IRF [International Rectifier]
- Click here to Download
- ·IR3080
- IRF [International Rectifier]
- XPHASE VRD10 CONTROL IC WITH VCCVID & OVERTEMP DETECT
- 2322001 KB
- ·IR3080M
- IRF [International Rectifier]
- XPHASE VRD10 CONTROL IC WITH VCCVID & OVERTEMP DETECT
- 2322001 KB
- ·IR3080MPBF
- IRF [International Rectifier]
- XPHASETM VRD10 CONTROL IC WITH VCCVID & OVERTEMP DETECT
- 1942165 KB
- ·IR3080MTR
- IRF [International Rectifier]
- XPHASE VRD10 CONTROL IC WITH VCCVID & OVERTEMP DETECT
- 2322001 KB
- ·IR3081
- IRF [International Rectifier]
- XPHASE VR 10.0 CONTROL IC
- 405917 KB
- ·IR3081M
- IRF [International Rectifier]
- XPHASE VR 10.0 CONTROL IC
- 405917 KB
- ·IR3081MTR
- IRF [International Rectifier]
- XPHASE VR 10.0 CONTROL IC
- 405917 KB
- ·IR3082
- IRF [International Rectifier]
- XPHASE AMD OPTERON/ATHLON 64 CONTROL IC
- 455427 KB
IR3080PbF Relative Products

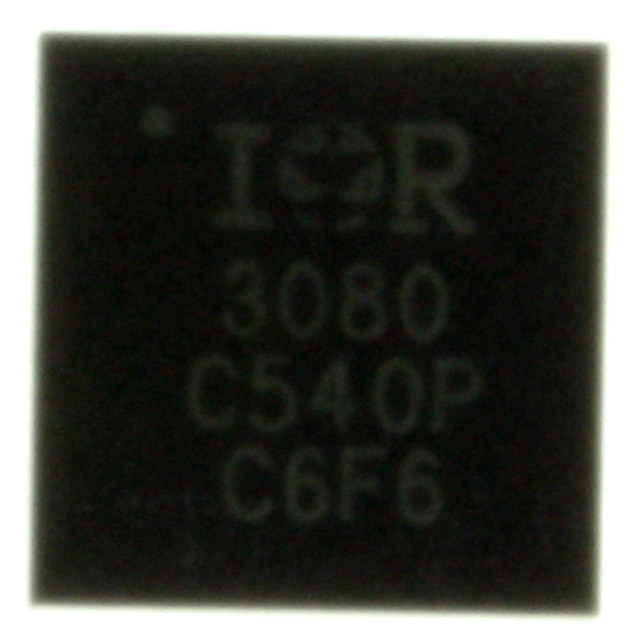

IR3080MTRPBF
