IXSK35N120AU1, IXSK40N60CD1, IXSM20N60 Datasheet download
Category: Discrete Semiconductor Products
MFG: IXYS
Package Cooled: IXYS
D/C: 04+

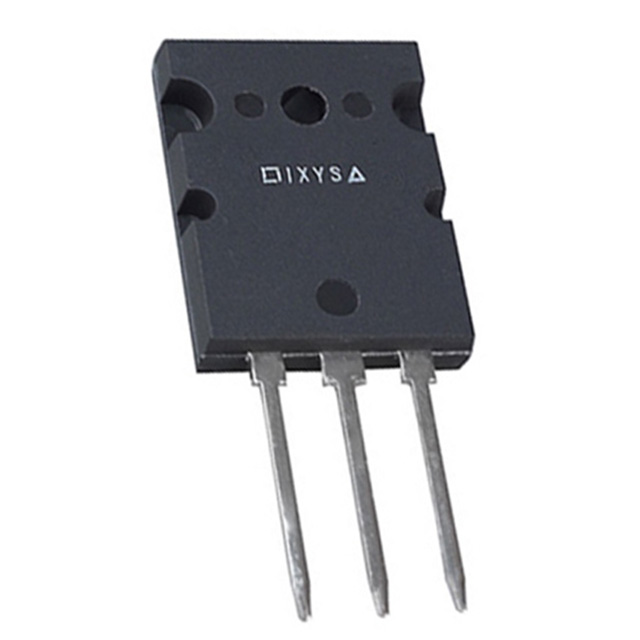

Description: IGBT V SCSOA TO-264
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IXSK35N120AU1
File Size: 41573 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IXSA10N60B2D1
File Size: 603250 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IXSA10N60B2D1
File Size: 603250 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
| Technical/Catalog Information | IXSK35N120AU1 |
| Vendor | IXYS |
| Category | Discrete Semiconductor Products |
| Input Type | Standard |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 70A |
| Vce(on) (Max) @ Vge, Ic | 4V @ 15V, 35A |
| Power - Max | 300W |
| Mounting Type | Through Hole |
| Package / Case | TO-264AA |
| Packaging | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IXSK35N120AU1 IXSK35N120AU1 |
| Symbol | Test Conditions | Maximum | Ratings |
| VCES VCGR |
TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 M |
1200 1200 |
V V |
| VGES VGEM |
Continuous Transient |
±20 ±30 |
V |
| IC25 IC90 ICM |
TC = 25°C TC = 90°C TC = 25°C, 1 ms |
70 35 140 |
A |
| SSOA (RBSOA) |
VGE = 15 V, TJ = 125°C, RG = 2.7 Clamped inductive load, VCC= 0.8 VCES |
ICM =70 @ 0.8 VCES |
A |
| tSC (SCSOA) |
VGE = 15 V, VCE = 360 V, TJ = 125°C RG = 33 ?, non repetitive |
10 | s |
| PC | TC = 25°C IGBT Diode |
300 190 |
W W |
| TJ TJM Tstg TL |
1.6 mm (0.063 in) from case for 10 s | -55 ... +150 150 -55 ... +150 300 |
°C °C °C °C |
| Md | Mounting torque | 1.15/13 | Nm/lb.in. |
| Weight | 10 | g |
| Technical/Catalog Information | IXSK40N60CD1 |
| Vendor | IXYS |
| Category | Discrete Semiconductor Products |
| Input Type | Standard |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 75A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 40A |
| Power - Max | 280W |
| Mounting Type | Through Hole |
| Package / Case | TO-264AA |
| Packaging | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IXSK40N60CD1 IXSK40N60CD1 |
