MFG:STMicroelectronics Category:Sensors, Transducers Package Cooled:LGA14 D/C:07+

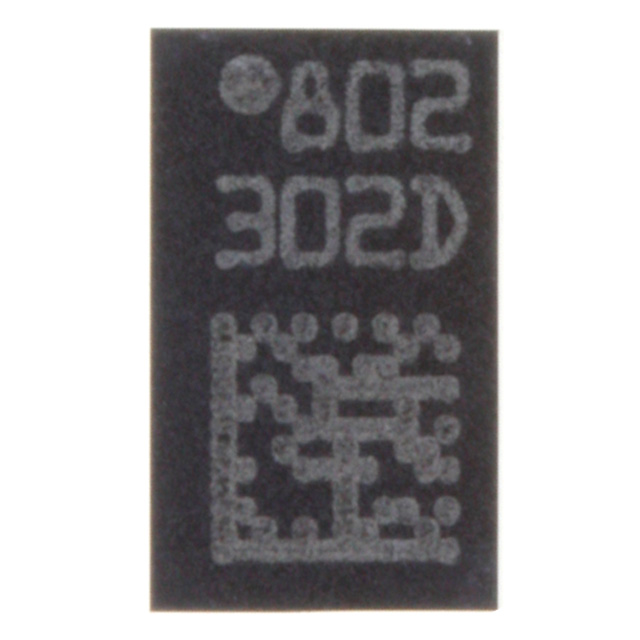

LIS302DLTR, LIS3L02ALETR, LIS3L02AQ Datasheet download
Category: Sensors, Transducers
MFG: STMicroelectronics
Package Cooled: LGA14
D/C: 07+
Description: ACCELEROMETER THREE AXIS 44QFN
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: LIS1R02
File Size: 83607 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LIS1R02
File Size: 83607 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: LIS3L02AQ
File Size: 166352 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
| Technical/Catalog Information | LIS302DLTR |
| Vendor | STMicroelectronics (VA) |
| Category | Sensors, Transducers |
| Acceleration Range | ±2g, 8g |
| Voltage Rating | 2.16V ~ 3.6V |
| Sensitivity | Digital |
| Features | High Shock Survivability |
| Package / Case | 14-LGA |
| Axis | Three |
| Interface | I²C, SPI |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LIS302DLTR LIS302DLTR 497 5911 6 ND 49759116ND 497-5911-6 |
| Technical/Catalog Information | LIS3L02AQ |
| Vendor | STMicroelectronics |
| Category | Sensors, Transducers |
| Acceleration Range | ±2g, 6g |
| Voltage Rating | 3.3V |
| Sensitivity | 220/660mV/g |
| Features | High Shock Survivability |
| Package / Case | 44-QFN |
| Axis | Three |
| Interface | Analog |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | LIS3L02AQ LIS3L02AQ 497 4026 ND 4974026ND 497-4026 |
The LIS3L02AQ is a low-power three-axis linear ac- celerometer that includes a sensing element and an IC interface able to take the information from the sensing element and to provide an analog signal to the external world.
The sensing element, capable to detect the acceler- ation, is manufactured using a dedicated process called THELMA (Thick Epi-Poly Layer for Microactu- ators and Accelerometers) developed by ST to pro- duce inertial sensors and actuators in silicon.
The IC interface instead is manufactured using a CMOS process that allows high level of integration to design a dedicated circuit which is trimmed to better match the sensing element characteristics.
The LIS3L02AQ has a user selectable full scale of 2g, 6g and it is capable of measuring accelerations over a maximum bandwidth of 4.0 KHz for the X and Y axis and 2.5KHz for the Z axis. The device band- width may be reduced by using external capacitanc- es. A self-test capability allows the user to check the functioning of the system.
The LIS3L02AQ is available in plastic SMD package and it is specified over a temperature range extend- ing from -40 to +85. The LIS3L02AQ belongs to a family of products suit- able for a variety of applications:
Motion activated functions in mobile terminals
Gaming and Virtual Reality input devices
Free-fall detection and Data protection
Antitheft systems and Inertial Navigation
Appliance Control and Robotics
| Symbol | Ratings | Maximum Value | Unit |
| Vdd | Supply voltage | -0.3 to 7 | V |
| Vin | Input Voltage on Any Control pin (FS, PD, ST) | -0.3 to Vdd +0.3 | V |
| APOW | Acceleration (Any axis, Powered, Vdd=3.3V) | 3000g for 0.5 ms | |
| 10000g for 0.1 ms | |||
| AUNP | Acceleration (Any axis, Not powered) | 3000g for 0.5 ms | |
| 10000g for 0.1 ms | |||
| TSTG | Storage Temperature Range | -40 to +85 | |
| ESD | Electrostatic Discharge Protection | -40 to +105 | |
| 2KV HBM | |||
