MFG:ON Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:SOT23 D/C:96+

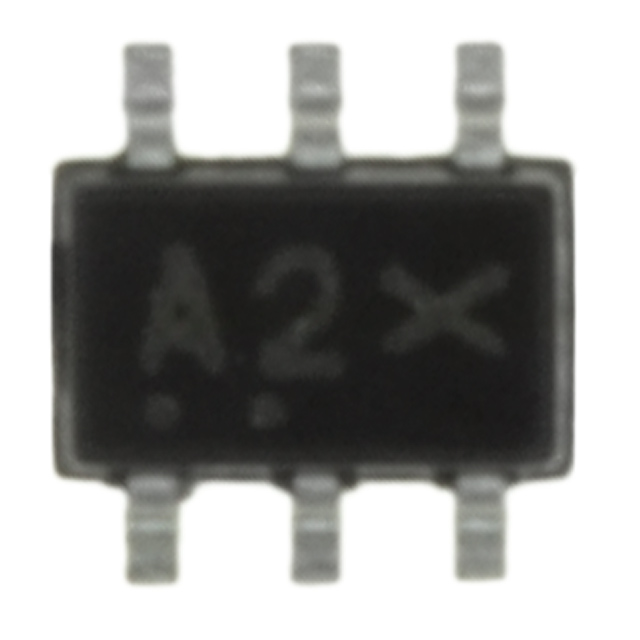

MBT3906DW1T1(A2), MBT3906DW1T1G, MBT3946DW Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor (VA)
Package Cooled: SOT23
D/C: 96+
Description: TRANS DUAL GP 200MA 40V SC88
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MBT2222
File Size: 40497 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MBT3906DW1T1G
File Size: 113913 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MBT3946DW
File Size: 520386 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
| Technical/Catalog Information | MBT3906DW1T1G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | 2 PNP (Dual) |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Current - Collector (Ic) (Max) | 200mA |
| Power - Max | 150mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 50mA |
| Frequency - Transition | 250MHz |
| Current - Collector Cutoff (Max) | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-70-6, SC-88, SOT-323-6, SOT-363 |
| Packaging | Digi-Reel? |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MBT3906DW1T1G MBT3906DW1T1G MBT3906DW1T1GOSDKR ND MBT3906DW1T1GOSDKRND MBT3906DW1T1GOSDKR |
| Rating | Symbol | Value | Unit |
| CollectorEmitter Voltage | V CEO | V | |
|
(NPN) |
40 | ||
|
(PNP) |
-40 | ||
| CollectorBase Voltage | V CBO | V | |
|
(NPN) |
60 | ||
|
(PNP) |
-40 | ||
| EmitterBase Voltage | V EBO | V | |
|
(NPN) |
6.0 | ||
|
(PNP) |
-5.0 | ||
| Collector Current -Continuous | I C | mAdc | |
|
(NPN) |
200 | ||
|
(PNP) |
200 |
