NCN6000DTBR2G, NCN6001, NCN6001DT

Table of contents:
Info of NCN6000DTBR2G
Info of NCN6001
Info of NCN6001DT

NCN6000DTBR2G, NCN6001, NCN6001DT Selling Leads, Datasheet

MFG:ON Semiconductor (VA) Category:Integrated Circuits (ICs) Package Cooled:TSSOP20 D/C:07+

NCN6000DTBR2G, NCN6001, NCN6001DT Datasheet download

Five Points

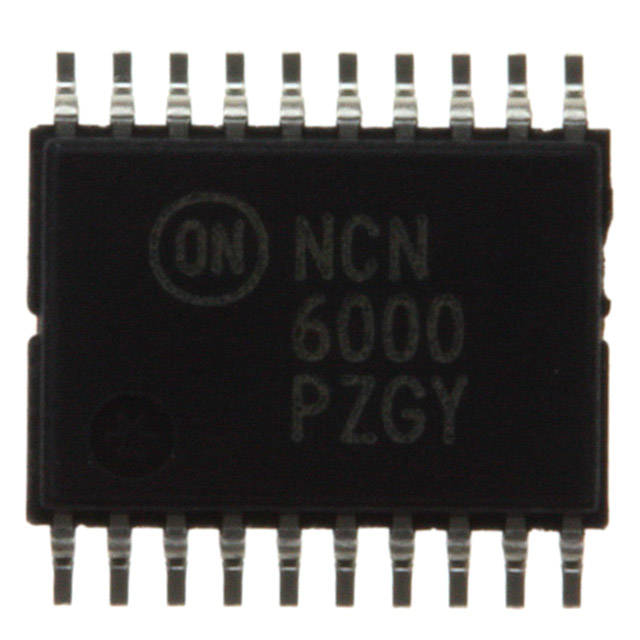

Part Number: NCN6000DTBR2G

Category: Integrated Circuits (ICs)

MFG: ON Semiconductor (VA)

Package Cooled: TSSOP20

D/C: 07+

Description: IC INTERFACE SMART CARD 20TSSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NCN6000DTBR2G Parameters

Technical/Catalog Information	NCN6000DTBR2G
Vendor	ON Semiconductor (VA)
Category	Integrated Circuits (ICs)
Applications	ATM Terminals, Gas Pumps, ISM
Interface	microcontroller
Voltage - Supply	2.7 V ~ 6 V
Package / Case	20-TSSOP
Packaging	Cut Tape (CT)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NCN6000DTBR2G NCN6000DTBR2G NCN6000DTBR2GOSCT ND NCN6000DTBR2GOSCTND NCN6000DTBR2GOSCT

NCN6001 General Description

The NCN6001 is an integrated circuit dedicated to the smart card interface applications. The device handles any type of smart card through a simple and flexible microcontroller interface. On top of that, thanks to the built-in chip select pin, several couplers can be connected in parallel.

The device is particularly suited for low cost, low power applications, with high extended battery life coming from extremely low quiescent current.

NCN6001 Maximum Ratings

Rating	Symbol	Value	Unit
Power Supply Voltage	V_CC	6.0	V
Power Supply Current Note: This current represents the maximum peak current the pin can sustain, not the NCN6001 average consumption.	I_bat	500	mA
Power Supply Current	I_CC	150 (Internally Limited)	mA
Digital Input Pins	V_in	-0.5 V < Vin < V_CC +0.5 V, but < 6.0 V	V
Digital Input Pins	I_in	±5.0	mA
Digital Output Pins	V_out	-0.5 V < Vin < V_CC +0.5 V, but < 6.0 V	V
Digital Output Pins	I_out	±10	mA
Card Interface Pins	V_card	-0.5 V < Vcard < CRD_VCC +0.5 V	V
Card Interface Pins, excepted CRD_CLK	I_card	15 (Internally Limited)	mA
Inductor Current	I_Lout	500 (Internally Limited)	mA
ESD Capability (Note 2) Standard Pins Card Interface Pins CRD_DET	V_ESD	2.0 8.0 4.0	kV kV kV
TSSOP-20 Package Power Dissipation @ Tamb = +85°C Thermal Resistance, Junction- to-Air (R_JA)	P_DS R_JA	320 125	mW °C/W
Operating Ambient Temperature Range	T_A	-25 to +85	°C
Operating Junction Temperature Range	T_J	-25 to +125	°C
Maximum Junction Temperature (Note 3)	T_Jmax	+150	°C
Storage Temperature Range	T_stg	-65 to +150	°C

1. Maximum electrical ratings are defined as those values beyond which damage to the device may occur at T_A = +25°C.
2. Human Body Model, R = 1500 , C = 100 pF.
3. Absolute Maximum Rating beyond which damage to the device may occur.

NCN6001 Features

• 100% Compatible with ISO 7816-3, EMV and GIE-CB Standards
• Fully GSM Compliant
• Wide Battery Supply Voltage Range: 2.7 < V_CC < 5.5 V
• Programmable CRD_VCC Supply Handles 1.8 V, 3.0 V or 5.0 V Card Operation
• Programmable Rise and Fall Card Clock Slopes
• Programmable Card Clock Divider
• Built-in Chip Select Logic Allows Parallel Coupling Operation
• ESD Protection on Card Pins (8.0 kV, Human Body Model)
• Supports up to 40 MHz Input Clock
• Built-in Programmable CRD_CLK Stop Function Handles Run or Low State
• Programmable CRD_CLK Slopes to Cope with Wide Operating Frequency Range
• Fast CRD_VCC Turn-on and Turn-off Sequence

NCN6001 Typical Application

• E-Commerce Interface
• Automatic Teller Machine (ATM) Smart Card
• Point of Sales (POS) System
• Pay TV System

NCN6001 Connection Diagram
