Datasheet: PA98
File Size: 79202 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PAA110
File Size: 151646 KB
Manufacturer: CLARE [Clare, Inc.]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PAA110
File Size: 151646 KB
Manufacturer: CLARE [Clare, Inc.]
Download : Click here to Download
| Technical/Catalog Information | PA98 |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | 12-SIP |
| Slew Rate | 1000 V/s |
| Gain Bandwidth Product | 100MHz |
| Current - Supply | 21mA |
| Current - Output/Channel | 200mA |
| Voltage - Supply, Single/Dual (±) | 30 V ~ 450 V, ±15 V ~ 225 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 5pA |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 500V |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | PA98 PA98 598 1337 ND 5981337ND 598-1337 |

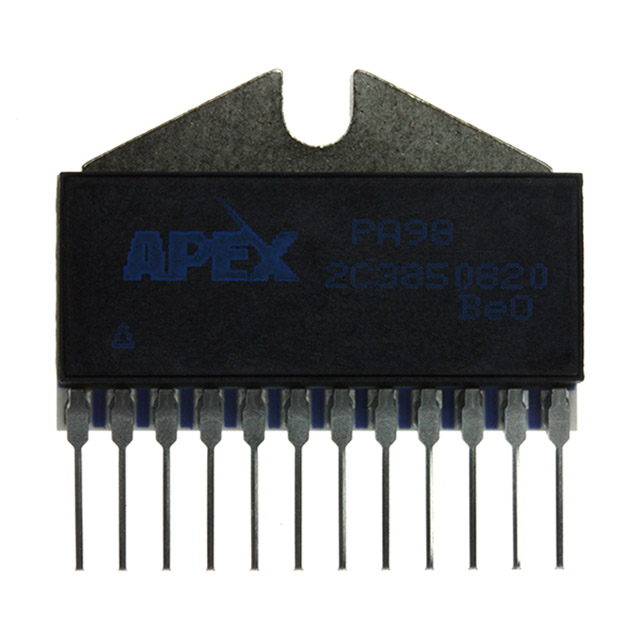

The PA98 is a high voltage, high power bandwidth MOSFET operational amplifier designed for output currents up to 200mA. Output voltages can swing up to ±215V with a dual supply and up to +440 volts with a single supply. The safe operating area (SOA) has no second breakdown limitations and can be observed with all types of loads by choosing an appropriate current limiting resistor. High accuracy is achieved with a cascode input circuit configuration. All internal biasing is referenced to a bootstrapped zener-MOSFET current source. As a result, the PA98 features an unprecedented supply range and excellent supply rejection. The MOSFET output stage is biased on for linear operation. External compensation provides user flexibility.
This hybrid circuit utilizes thick film (cermet) resistors, ceramic capacitors and silicon semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The Power SIP package is electrically isolated.
The PA98A is the A grade version.
Applications:
| Output Current MAX (A) | Supply Voltage MAX (V) | Slew Rate TYP (V/s) | Standby Current MAX (mA) | Power Dissipation MAX (W) |
|---|---|---|---|---|
| 0.2 | 450 | 1000 | 25 | 30 |
| Technical/Catalog Information | PAA110 |
| Vendor | Clare |
| Category | Relays |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Package / Case | 8-DIP |
| Circuit | DPST (2 Form A) |
| Load Current | 150mA |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 0 ~ 400V |
| Output Type | AC, DC |
| On-State Resistance | 22 Ohm |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PAA110 PAA110 CLA187 ND CLA187ND CLA187 |
PAA110 is a 400V, 150mA, 22 2-Form-A relay. Thisperformance leader provides high peak load voltage handling capability and improved peak load current handling.
|
Parameter |
Min |
Typ |
Max |
Units |
| Input Power Dissipation |
- |
- |
1501 |
mW |
| Input Control Current Peak (10ms) |
- - |
- - |
50 1 |
mA A |
| Reverse Input Voltage |
- |
- |
5 |
V |
| Total Power Dissipation |
- |
- |
8002 |
mW |
| Isolation VoltageInput to Output |
3750 |
- |
- |
VRMS |
| Operational Temperature |
-40 |
- |
+85 |
|
| Storage Temperature |
-40 |
- |
+125 |
|
| Soldering Temperature DIP Package |
- |
- |
+260 |
|
| Flatpack/Surface Mount Package (10 Seconds Max.) |
- |
- |
+220 |
