PCM1609KPTR, PCM1680, PCM1680DBQ

Table of contents:
Info of PCM1609KPTR
Info of PCM1680
Info of PCM1680DBQ

PCM1609KPTR, PCM1680, PCM1680DBQ Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:QFP 48 D/C:02+

PCM1609KPTR, PCM1680, PCM1680DBQ Datasheet download

Five Points

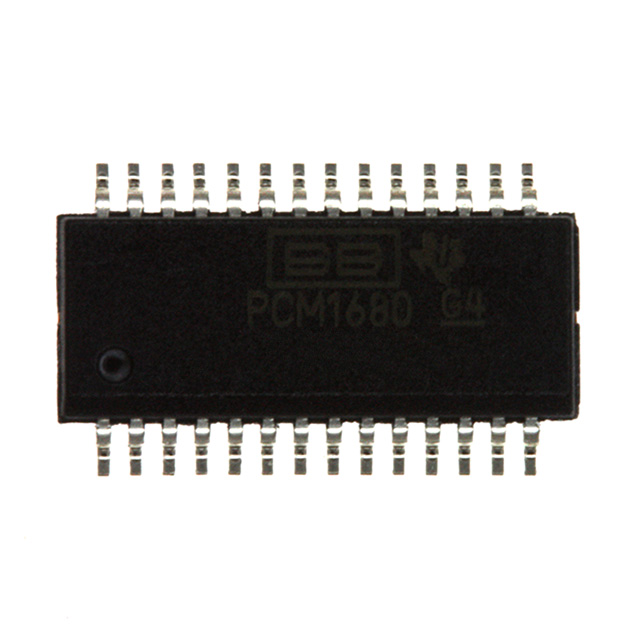

Part Number: PCM1680DBQ

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: QFP 48

D/C: 02+

Description: IC DAC AUDIO 24BIT 192KHZ 28QSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PCM1680 General Description

The PCM1680 is a CMOS monolithic integrated circuit which features eight 24-bit audio digital-to-analog converters and support circuitry in a small 28-lead SSOP. The digital-to-analog converters use TI's enhanced multilevel deltsigma architecture to achieve excellent signal-to-noise performance and a high tolerance to clock jitter.

The PCM1680 accepts industry-standard audio data formats with 16- to 24-bit audio data. Sampling rates up to 200 kHz are supported. The PCM1680 provides a full set of user-programmable functions through a serial control port, SPI or I²C.

PCM1680 Maximum Ratings

	PCM1680
Supply voltage: V_CC1, V_CC2, V_DD	0.3 V to 6.5 V
Supply voltage differences: V_CC1, V_CC2, V_DD	± 0.1 V
Ground voltage differences: AGND1, AGND2, DGND	± 0.1 V
Input voltage to digital pins	0.3 V to V_DD + 0.3 V, < 6.5 V
Input voltage to analog pins	0.3 V to V_CC + 0.3 V, < 6.5 V
Input current (any pins except supplies)	± 10 mA
Operating temperature	40 to 110
Storage temperature	55 to 150
Junction temperature	150
Lead temperature (soldering)	260 , 5 s
Package temperature (IR reflow, peak)	260

PCM1680 Features

• 24-Bit Resolution
• Analog Performance:
Dynamic Range: 105 dB Typical
SNR: 105 dB Typical
THD+N: 0.002% Typical
Full-Scale Output: 3.9 V_p-p Typical
• 4 * /8 * Oversampling Interpolation Filter:
Stop-Band Attenuation: 50 dB
Pass-Band Ripple: ± 0.04 dB
• Sampling Frequency: 5 kHz to 200 kHz
• System Clock: 128 f_S, 192 f_S , 256 f_S , 384 f_S ,
   512 _S , 768 f_S , or 1152 f_S With Autodetect
• Zero Flags for Selectable Channel Combinations
• Serial Port (SPI/I²C) for Mode Control
• User-Programmable Functions:
   Flexible Audio Data Formats
• Right-Justified, I²S, and Left-Justified
• 16-, 18-, 20-, and 24-Bit Audio Data
   Digital Attenuation: Mode Selectable
• 0 dB to 63 dB, 0.5 dB/step
• 0 dB to 100 dB, 1 dB/step
   Soft Mute
   Digital De-Emphasis
   Digital Filter Rolloff: Sharp or Slow
• Single Power-Supply Operation: 5-V Analog,
   5-V Digital
• Package: 28-Lead SSOP (150 mil)
• Pin-Compatible With PCM1780

PCM1680 Typical Application

• Integrated A/V Receivers
• DVD Movie and Audio Players
• HDTV Receivers
• Car Audio Systems
• DVD Add-On Cards for High-End PCs
• Digital Audio Workstations
• Other Multichannel Audio Systems

PCM1680DBQ Parameters

Technical/Catalog Information	PCM1680DBQ
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Data Interface	Serial
Number of Bits	24
Operating Temperature	-25°C ~ 70°C
Package / Case	28-QSOP (SSOP)
Packaging	Tube
Voltage Supply Source	Analog and Digital
Settling Time	-
Drawing Number	296; 4073301-5; DBQ; 28
Number of Converters	8
Power Dissipation (Max)	605mW
Number of Outputs and Type	8 Voltage, Unipolar
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PCM1680DBQ PCM1680DBQ 296 18004 5 ND 296180045ND 296-18004-5
