PCM1754, PCM1754D, PCM1754DBQ

Table of contents:
Info of PCM1754
Info of PCM1754D
Info of PCM1754DBQ

PCM1754, PCM1754D, PCM1754DBQ Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:SSOP16 D/C:07+

PCM1754, PCM1754D, PCM1754DBQ Datasheet download

Five Points

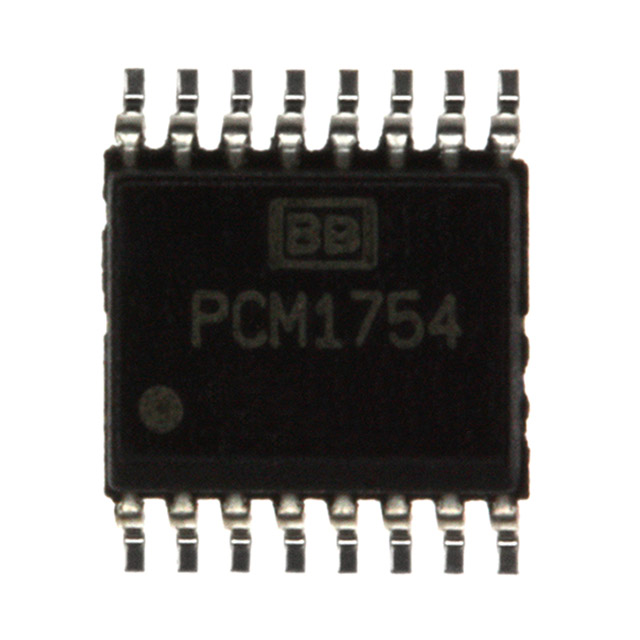

Part Number: PCM1754DBQ

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: SSOP16

D/C: 07+

Description: IC AUDIO DAC 24BIT 16QSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PCM1754 General Description

The PCM1753/54/55 is a CMOS, monolithic, integrated circuit, which includes stereo digital-to-analog converters and support circuitry in a small 16-lead SSOP package.The data converters use TI's enhanced multilevel delta-sigma architecture, which employs 4th-order noise shaping and 8-level amplitude quantization to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1753/54/55 accepts industry standard audio data formats with 16- to 24-bit data,providing easy interfacing to audio DSP and decoder chips. Sampling rates up to 200 kHz are supported. A full set of user-programmable functions is accessible through a three-wire serial control port, which supports register write functions.

The PCM1753/55 is pin compatible with the PCM1748,PCM1742, and PCM1741, except for pin 5.

PCM1754 Maximum Ratings

	UNIT
Supply voltage:V_CC	0.3 V to 6.5 V
Ground voltage differences: AGND, DGND	±0.1 V
Input voltage	0.3 V to 6.5 V
Input current (any pins except supplies)	±10 mA
Ambient temperature under bias	40 to 125
Storage temperature	55 to 150
Junction temperature	150
Lead temperature (soldering)	260, 5 s
Package temperature (IR reflow, peak)	260

PCM1754 Features

* 24-Bit Resolution
* Analog Performance (V_CC = 5 V):
− Dynamic Range: 106 dB
− SNR: 106 dB, Typical
− THD+N: 0.002%, Typical
− Full-Scale Output: 4 V p-p, Typical
*4*/8* Oversampling Digital Filter:
− Stop-Band Attenuation: 50 dB
− Pass-Band Ripple: ±0.04 dB
* Sampling Frequency: 5 kHz to 200 kHz
* System Clock: 128 f_S, 192 f_S, 256 f_S, 384 f_S,
512 f_S, 768 f_S, 1152 f_S With Auto Detect
* Software Control (PCM1753, PCM1755):
− Accepts 16-, 18-, 20-, and 24-Bit Audio
Formats: Standard, I2S, and Left-Justified
− Digital Attenuation: 0 dB to 63 dB,0.5 dB/Step
− Digital De-Emphasis
− Digital Filter Rolloff: Sharp or Slow
− Soft Mute
− Zero Flags for Each Output
− Open-Drain Output Zero Flag (PCM1755)
*Hardware Control (PCM1754):
− I²S and 16-Bit Word, Right-Justified
− 44.1 kHz Digital De-Emphasis
− Soft Mute
− Zero Flag for L-, R-Channel Common Output
*Power Supply: 5-V Single Supply
*Small 16-Lead SSOP Package, Lead-Free

PCM1754 Typical Application

*A/V Receivers
*DVD Movie Players
*DVD Add-On Cards For High-End PCs
*DVD Audio Players
*HDTV Receivers
*Car Audio Systems
*Other Applications Requiring 24-Bit Audio

PCM1754 Connection Diagram

PCM1754DBQ Parameters

Technical/Catalog Information	PCM1754DBQ
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Data Interface	Serial
Number of Bits	24
Operating Temperature	-40°C ~ 85°C
Package / Case	16-QSOP (SSOP)
Packaging	Tube
Voltage Supply Source	Single
Settling Time	-
Drawing Number	296; 4073301-2; DBQ; 16
Number of Converters	2
Power Dissipation (Max)	150mW
Number of Outputs and Type	2 Voltage, Unipolar
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PCM1754DBQ PCM1754DBQ 296 16652 5 ND 296166525ND 296-16652-5
