PCM1774RGPT, PCM1780, PCM1780DBQ

Table of contents:
Info of PCM1774RGPT
Info of PCM1780
Info of PCM1780DBQ

PCM1774RGPT, PCM1780, PCM1780DBQ Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:SMD D/C:2540

PCM1774RGPT, PCM1780, PCM1780DBQ Datasheet download

Five Points

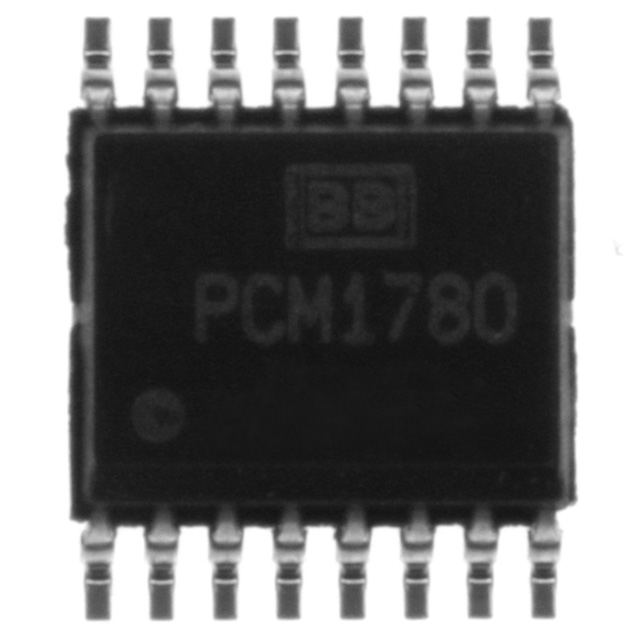

Part Number: PCM1780DBQ

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: SMD

D/C: 2540

Description: IC DAC 24BIT AUDIO 192KHZ 16QSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PCM1774RGPT Parameters

Technical/Catalog Information	PCM1774RGPT
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Data Interface	Serial
Number of Bits	16
Operating Temperature	-40°C ~ 85°C
Package / Case	20-VQFN
Packaging	Digi-Reel?
Voltage Supply Source	Analog and Digital
Settling Time	-
Drawing Number	296; 4203555; RGP; 20
Number of Converters	2
Power Dissipation (Max)	33mW
Number of Outputs and Type	2 Voltage, Unipolar
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PCM1774RGPT PCM1774RGPT 296 22036 6 ND 296220366ND 296-22036-6

PCM1780 General Description

The PCM1780/81/82 is a CMOS, monolithic, integrated circuit, which includes stereo digital-to-analog converters and support circuitry in a small 16-lead SSOP package. The data converters use TI ' s enhanced multilevel delta sigma architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1780/81/82 accepts industry standard audio data formats with 16- to 24-bit data, providing easy interfacing to audio DSP and decoder chips. Sampling rates up to 200 kHz are supported. The PCM1780/82 provides a full set of user-programmable functions through a three-wire serial control port, which supports register write functions. The PCM1781 provides a subset of user-programmable functions through four control pins.

The PCM1780 is pin-compatible with the PCM1680 (8-channel DAC).

PCM1780 Maximum Ratings

		PCM1780, PCM1781, PCM1782
Supply voltage	V_CC	0.3 V to 6.5 V
Input voltage		0.3 V to V_CC + 0.3 V, < 6.5 V
Input current (any pins except supplies)		± 10 mA
Ambient temperature under bias		40 to 125
Storage temperature		55 to 150
Junction temperature		150
Lead temperature (soldering)		260 , 5 s
Package temperature (IR reflow, peak)		260

PCM1780 Features

• 24-Bit Resolution
• Analog Performance (V_CC = 5 V):
Dynamic Range: 106 dB
SNR: 106 dB, Typical
THD+N: 0.002%, Typical
Full-Scale Output: 3.9 Vp-p, Typical
• 4 * /8 * Oversampling Digital Filter:
Stop-Band Attenuation: 50 dB
Pass-Band Ripple: ± 0.04 dB
• Sampling Frequency: 5 kHz to 200 kHz
• System Clock: 128 f_S , 192 f_S , 256 f_S , 384 f_S ,
512 f_S , 768 f_S , 1152 f_S With Autodetect
• Software Control (PCM1780, PCM1782):
Accepts 16-, 18-, 20-, and 24-Bit Audio Data
Formats: Right-Justified, I²S, and
Left-Justified
Digital Attenuation: Mode Selectable
• 0 dB to 63 dB, 0.5 dB/step
• 0 dB to 100 dB, 1 dB/step
Digital De-Emphasis
Digital Filter Rolloff: Sharp or Slow
Soft Mute
Zero Flags for Each Output
Open-Drain Output Zero Flag (PCM1782)
• Hardware Control (PCM1781):
I_²S and 16-Bit Word, Right-Justified
Digital De-Emphasis
Soft Mute
Zero Flag for L-, R-Channel Common Output
• Power Supply: 5-V Single Supply
• Small, 16-Lead SSOP Package (150 mil)
• Pin-Compatible with PCM1680

PCM1780 Typical Application

• A/V Receivers
• DVD Movie Players
• DVD Add-On Cards For High-End PCs
• DVD Audio Players
• HDTV Receivers
• Car Audio Systems
• Other Applications Requiring 24-Bit Audio

PCM1780 Connection Diagram

PCM1780DBQ Parameters

Technical/Catalog Information	PCM1780DBQ
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Data Interface	Serial
Number of Bits	24
Operating Temperature	-25°C ~ 85°C
Package / Case	16-QSOP (SSOP)
Packaging	Tube
Voltage Supply Source	Single
Settling Time	-
Drawing Number	296; 4073301-2; DBQ; 16
Number of Converters	2
Power Dissipation (Max)	200mW
Number of Outputs and Type	2 Voltage, Unipolar
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PCM1780DBQ PCM1780DBQ 296 17959 5 ND 296179595ND 296-17959-5
