PTB48560CAH, PTB48580BAH, PTB48580BAZ

Table of contents:
Info of PTB48560CAH
Info of PTB48580BAH
Info of PTB48580BAZ

PTB48560CAH, PTB48580BAH, PTB48580BAZ Selling Leads, Datasheet

MFG:Texas Instruments Category:Power Supplies

PTB48560CAH, PTB48580BAH, PTB48580BAZ Datasheet download

Five Points

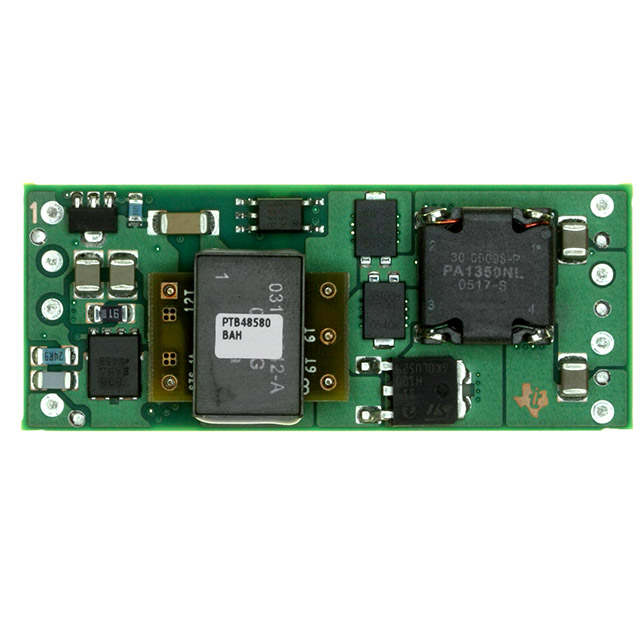

Part Number: PTB48580BAH

Category: Power Supplies

MFG: Texas Instruments

Package Cooled:

D/C:

Description: CONV DC-DC +-12V 1.25A SMD

Price Break

1
25
100
250
500
1000
5000

Unit Price

46.88000
43.75000
40.62500
39.84376
39.06250
38.59375
37.50000

Extended Price

46.88
1093.75
4062.50
9960.94
19531.25
38593.75
187500.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PTB48560CAH Parameters

Technical/Catalog Information	PTB48560CAH
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	36 ~ 75VDC
Output	9 ~ 13.2VDC
Power (Watts)	30W
Number of Outputs	1
1st Output	9 ~ 13.2 VDC @ 2.5A
2nd Output	-
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	Tray
Package / Case	11-DIP Module
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PTB48560CAH PTB48560CAH 296 20344 ND 29620344ND 296-20344

PTB48580BAH Parameters

Technical/Catalog Information	PTB48580BAH
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	36 ~ 75VDC
Output	±12V
Power (Watts)	30W
Number of Outputs	2
1st Output	12 VDC @ 1.25A
2nd Output	-12 VDC @ 1.25A
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Through Hole
Packaging	Tray
Package / Case	8-DIP MODULE
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PTB48580BAH PTB48580BAH 296 20350 ND 29620350ND 296-20350

PTB48580BAZ Parameters

Technical/Catalog Information	PTB48580BAZ
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	36 ~ 75VDC
Output	±12V
Power (Watts)	30W
Number of Outputs	2
1st Output	12 VDC @ 1.25A
2nd Output	-12 VDC @ 1.25A
3rd Output	-
4th Output	-
Type	Isolated
Mounting Type	Surface Mount
Packaging	Tray
Package / Case	8-DIP SMD
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PTB48580BAZ PTB48580BAZ 296 20352 ND 29620352ND 296-20352
