RPI-352, RPI-441C1, RPI-5200

Table of contents:
Info of RPI-352
Info of RPI-441C1
Info of RPI-5200

RPI-352, RPI-441C1, RPI-5200 Selling Leads, Datasheet

MFG:Rohm Semiconductor Category:Sensors, Transducers Package Cooled:in stock D/C:03+

RPI-352, RPI-441C1, RPI-5200 Datasheet download

Five Points

Part Number: RPI-352

Category: Sensors, Transducers

MFG: Rohm Semiconductor

Package Cooled: in stock

D/C: 03+

Description: SENSOR OPTO SLOT 4MM TRANS THRU

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RPI-352 Parameters

Technical/Catalog Information	RPI-352
Vendor	Rohm Semiconductor
Category	Sensors, Transducers
Sensing Distance	0.118" (3mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	30mA
Current - DC Forward (If)	50mA
Output Configuration	Phototransistor
Response Time	10s , 10s <!--10us-->
Type	Unamplified
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RPI 352 RPI352 511 1351 ND 5111351ND 511-1351

RPI-352 General Description

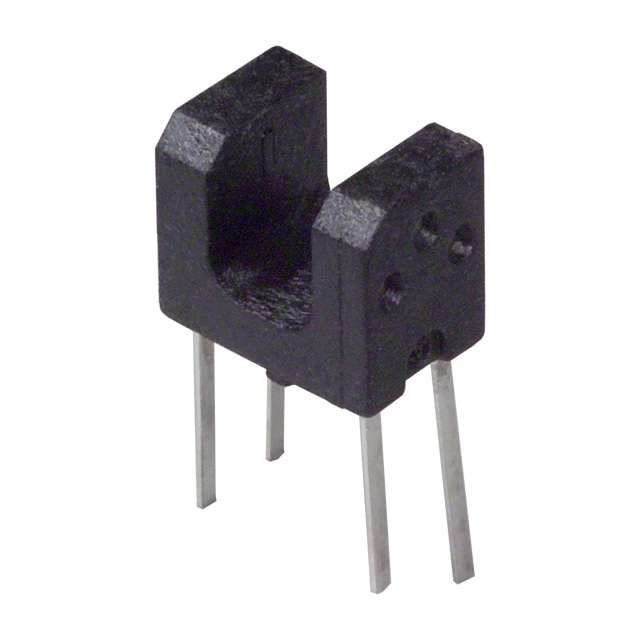

The RPI-352 is a compact, double-layer mold photointerrupter.

RPI-352 Features

· Positioning pin enables precision mounting.
· Gap between emitter and detector is 3.0 mm.
· Compact

RPI-352 Typical Application

·Floppy disk drives
·Printers
·Facsimiles
·VCR

RPI-441C1 Parameters

Technical/Catalog Information	RPI-441C1
Vendor	Rohm Semiconductor
Category	Sensors, Transducers
Sensing Distance	0.157" (4mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	30mA
Current - DC Forward (If)	50mA
Output Configuration	Phototransistor
Response Time	10s , 10s <!--10us-->
Type	Unamplified
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RPI 441C1 RPI441C1 511 1341 ND 5111341ND 511-1341

RPI-441C1 General Description

The RPI-441C1 is a compact, double-layer mold photointerrupter.

While the gap has a width of 4 mm, the body has the compact dimensions of 8 mm (w)×5.2 mm (h)×4.2 mm (d).

RPI-441C1 Features

·Compact with a 4 mm gap.
· High precision position detection (slit width of 0.5 mm).
· Minimal influence from stray light.
· Low collector-emitter voltage.

RPI-441C1 Typical Application

·Optical control equipment
·Facsimiles, printers

RPI-5200 General Description

The RPI-5200 is a compact, actuator-type photointerrupter.

RPI-5200 Features

·Compact.
· Minimal influence from stray light.
· Equipped with an actuator mount.

RPI-5200 Typical Application

·Optical control equipment
·Facsimiles
·Plain paper copiers
