RPI-122A, RPI-124, RPI-131

Table of contents:
Info of RPI-122A
Info of RPI-124
Info of RPI-131

RPI-122A, RPI-124, RPI-131 Selling Leads, Datasheet

MFG:Rohm Semiconductor Category:Sensors, Transducers Package Cooled:1mm D/C:1mm

RPI-122A, RPI-124, RPI-131 Datasheet download

Five Points

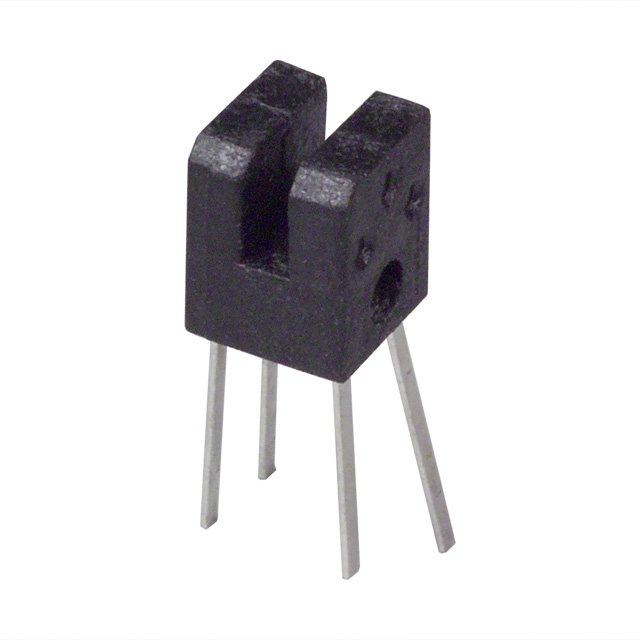

Part Number: RPI-131

Category: Sensors, Transducers

MFG: Rohm Semiconductor

Package Cooled: 1mm

D/C: 1mm

Description: SENSR OPTO SLOT 1.2MM TRANS THRU

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RPI-124 General Description

The RPI-124 is an ultra-small size, doublelayer mold photointerrupter.

RPI-124 Features

· Ultra-small.
· High-precision position detection (slit width = 0.15 mm).
· Minimal influence from stray light.
· Low collector-emitter saturation voltage.

RPI-124 Typical Application

·Optical control equipment
·Cameras
·Floppy disk drives

RPI-131 Parameters

Technical/Catalog Information	RPI-131
Vendor	Rohm Semiconductor
Category	Sensors, Transducers
Sensing Distance	0.047" (1.2mm)
Sensing Method	Transmissive
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	30mA
Current - DC Forward (If)	50mA
Output Configuration	Phototransistor
Response Time	10s , 10s <!--10us-->
Type	Unamplified
Mounting Type	Through Hole
Package / Case	PCB Mount
Packaging	Bulk
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RPI 131 RPI131 511 1339 ND 5111339ND 511-1339

RPI-131 General Description

The RPI-131 is an ultra-small size, doulble-layer photointerrupter.

RPI-131 Features

· Ultra-small.
· Minimal influence from stray light.
· Low collector-emitter saturation voltage.

RPI-131 Typical Application

·Optical control equipment
·Cameras
·Floppy disk drives
