RPI-121

Optical Switches, Transmissive, with Phototransistor Output 0.40mm slit width 0.7mA min., 5V

product image

RPI-121 Picture
See larger image
SeekIC No. : 0085992 Detail

RPI-121: Optical Switches, Transmissive, with Phototransistor Output 0.40mm slit width 0.7mA min., 5V

RPI-121 Data Sheet

floor Price/Ceiling Price

US $ .36~.85 / Piece | Get Latest Price
Part Number:
RPI-121
Mfg:
ROHM Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.85
  • $.48
  • $.38
  • $.36
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Series: -
Sensing Method: Transmissive
Output Configuration: Phototransistor
Mounting Type: Through Hole
Package / Case: PCB Mount
Manufacturer: Rohm Semiconductor
Current - Collector (Ic) (Max): 30mA
Voltage - Collector Emitter Breakdown (Max): 30V
Current - DC Forward (If): 50mA
Response Time: 10µs, 10µs
Packaging: Bulk
Sensing Distance: 0.039" (1mm)


Features:

· Ultra-small.
· Minimal influence from stray light.
· Low collector-emitter saturation voltage.


Application

·Optical control equipment
·Cameras
·Floppy disk drives

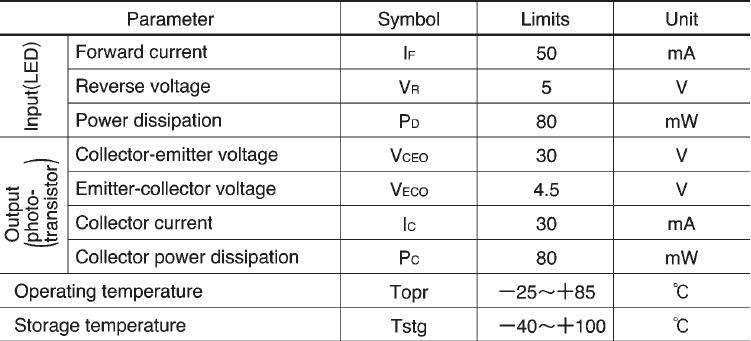

Specifications

Connection Diagram


Description

The RPI-121 is an ultra-small size, doublelayer mold photointerrupter.


Parameters:

Technical/Catalog InformationRPI-121
VendorRohm Semiconductor
CategorySensors, Transducers
Sensing Distance0.039" (1mm)
Sensing MethodTransmissive
Voltage - Collector Emitter Breakdown (Max)30V
Current - Collector (Ic) (Max)30mA
Current - DC Forward (If)50mA
Output ConfigurationPhototransistor
Response Time10s , 10s <!--10us-->
TypeUnamplified
Mounting TypeThrough Hole
Package / CasePCB Mount
PackagingBulk
Operating Temperature-25°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names RPI 121
RPI121
511 1336 ND
5111336ND
511-1336
