SDB10S30, SDB20S30, SDB3101 Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies
Package Cooled: P-TO220-3-45
D/C: 08+/09+
Description: DIODE SCHOTTKY 300V 10A TO-220
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SDB10S30
File Size: 633806 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SDB20S30
File Size: 222156 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SDB3101
File Size: 52380 KB
Manufacturer: AUK [AUK corp]
Download : Click here to Download
| Parameter |
Symbol |
Value |
Unit |
| Continuous forward current, TC=100 |
IF |
10 |
A |
| RMS forward current, f=50Hz |
IFRMS |
14 | |
| Surge non repetitive forward current, sine halfwave TC=25, tp=10ms |
IFSM |
36 | |
| Repetitive peak forward current Tj=150, TC=100, D=0.1 |
IFRM |
45 | |
| Non repetitive peak forward current tp=10µs, TC=25 |
IFMAX |
100 | |
| i 2t value, TC=25, tp=10ms |
i2dt |
6.5 |
A²s |
| Repetitive peak reverse voltage |
VRRM |
300 |
V |
| Surge peak reverse voltage |
VRSM |
300 | |
| Power dissipation, TC=25 |
Ptot |
65 |
W |
| Operating and storage temperature |
Tj , Tstg |
-55... +175 |
|
| Technical/Catalog Information | SDB20S30 |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Diode Type | Silicon Carbide |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - DC Reverse (Vr) (Max) | 300V |
| Current - Average Rectified (Io) (per Diode) | 10A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.7V @ 10A |
| Current - Reverse Leakage @ Vr | 200A @ 300V |
| Reverse Recovery Time (trr) | 0ns |
| Speed | No Recovery Time > 500mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | PG-TO263 |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SDB20S30 SDB20S30 |
| Parameter |
Symbol |
Value |
Unit |
| Continuous forward current, TC=100 |
IF |
10 |
A |
| RMS forward current, f=50Hz |
IFRMS |
14 | |
| Surge non repetitive forward current, sine halfwave TC=25 , tp=10ms |
IFSM |
36 | |
| Repetitive peak forward current Tj=150 , TC=100 , D=0.1 |
IFRM |
45 | |
| Non repetitive peak forward current tp=10µs, TC=25 |
IFMAX |
100 | |
| i 2t value, TC=25 , tp=10ms |
i2dt |
6.5 |
A²s |
| Repetitive peak reverse voltage |
VRRM |
300 |
V |
| Surge peak reverse voltage |
VRSM |
300 | |
| Power dissipation, single diode mode, TC=25 |
Ptot |
65 |
W |
| Operating and storage temperature |
Tj , Tstg |
-55... +175 |
|

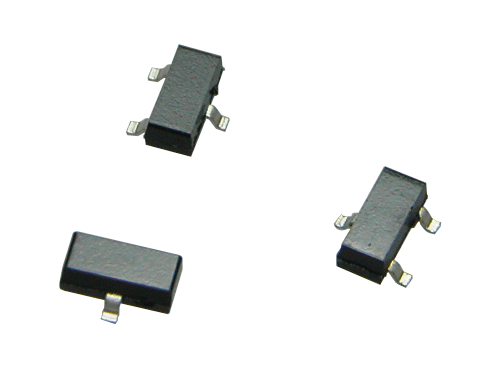

| High Current Capability and Low Forward Voltage Drop |
| This production is enhanced with lower VF and higher surge to provide lower power loss and higher efficiency. Also this production provides the ultimate efficiency in power conversion and power switching applications. The applications are power supply output rectifications and SMPS applications |
| Characteristic |
Symbol |
Ratings |
Unit |
| Reverse voltage |
VR |
30 |
V |
| Repetitive peak forward current |
IFRM* |
0.5 |
A |
| Forward current |
IF |
0.2 |
A |
| Non-repetitive peak forward current(10ms) |
IFSM |
2 |
A |
| Power dissipation |
PD |
150 |
mW |
| Junction temperature |
Tj |
150 |
°C |
| Storage temperature |
Tstg |
-55 ~ 150 |
°C |
