MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:P-TO220-3-31 D/C:2008+
SPA03N60C3, SPA04N50C3, SPA04N60C2 Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies
Package Cooled: P-TO220-3-31
D/C: 2008+
Description: MOSFET N-CH 560V 4.5A TO220FP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download

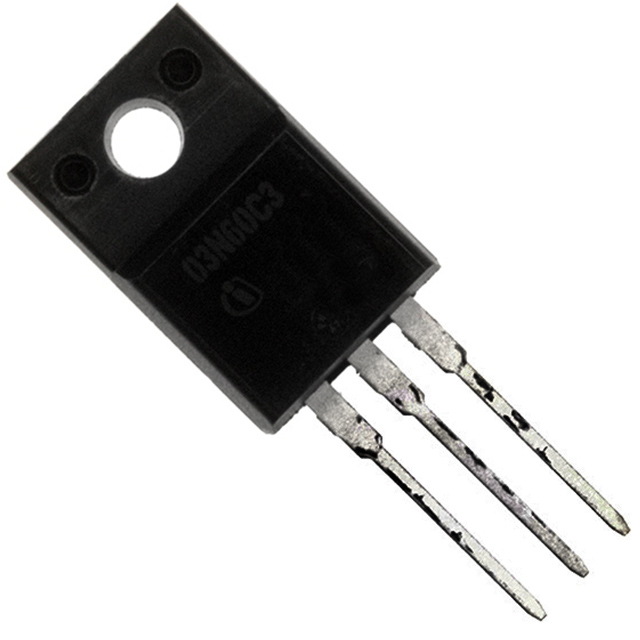

Datasheet: SPA03N60C3
File Size: 315633 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPA04N50C3
File Size: 299719 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SPA04N60C2
File Size: 168222 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
| Technical/Catalog Information | SPA03N60C3 |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 650V |
| Current - Continuous Drain (Id) @ 25° C | 3.2A |
| Rds On (Max) @ Id, Vgs | 1.4 Ohm @ 2A, 10V |
| Input Capacitance (Ciss) @ Vds | 400pF @ 25V |
| Power - Max | 29.7W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 17nC @ 10V |
| Package / Case | TO-220FP |
| FET Feature | Standard |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SPA03N60C3 SPA03N60C3 SPA03N60C3IN ND SPA03N60C3INND SPA03N60C3IN |
| Parameter | Symbol | Value | Unit | |
| SPP_B | SPA | |||
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 2 3.2 |
3.21) 21) |
A |
| Pulsed drain current, tp limited by Tjmax | ID puls | 9.6 | 9.6 | A |
| Avalanche energy, single pulse ID=2.4A, VDD=50V |
EAS | 100 | 100 | mJ |
| Avalanche energy, repetitive tAR limited by Tjmax2) ID=3.2A, VDD=50V |
EAR | 0.2 | 0.2 | |
| Avalanche current, repetitive tAR limited by Tjmax | IAR | 3.2 | 3.2 | A |
| Gate source voltage static | VGS | ±20 | ±20 | V |
| Gate source voltage AC (f >1Hz) | VGS | ±30 | ±30 | |
| Power dissipation, TC = 25°C | Ptot | 38 | 29.7 | W |
| Operating and storage temperature | Tj , Tstg | -55...+150 | °C | |
| Drain Source voltage slope VDS = 480 V, ID = 3.2 A, Tj = 125 °C |
dv/dt | 50 | V/ns | |
| Technical/Catalog Information | SPA04N50C3 |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 560V |
| Current - Continuous Drain (Id) @ 25° C | 4.5A |
| Rds On (Max) @ Id, Vgs | 950 mOhm @ 2.8A, 10V |
| Input Capacitance (Ciss) @ Vds | 470pF @ 25V |
| Power - Max | 31W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 22nC @ 10V |
| Package / Case | TO-220F |
| FET Feature | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SPA04N50C3 SPA04N50C3 SPA04N50C3IN ND SPA04N50C3INND SPA04N50C3IN |
| Parameter | Symbol | Value | Unit | |
| SPP_B | SPA | |||
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 4.5 2.8 |
4.51) 2.81) |
A |
| Pulsed drain current, tp limited by Tjmax | ID puls | 13.5 | 13.5 | A |
| Avalanche energy, single pulse ID=3.4A, VDD=50V |
EAS | 130 | 130 | mJ |
| Avalanche energy, repetitive tAR limited by Tjmax2) ID=4.5A, VDD=50V |
EAR | 0.4 | 0.4 | |
| Avalanche current, repetitive tAR limited by Tjmax | IAR | 4.5 | 4.5 | A |
| Gate source voltage | VGS | ±20 | ±20 | V |
| Gate source voltage AC (f >1Hz) | VGS | ±30 | ±30 | |
| Power dissipation, TC = 25°C | Ptot | 50 | 31 | W |
| Operating and storage temperature | Tj , Tstg | -55...+150 | °C | |
| Drain Source voltage slope VDS = 400 V, ID = 4.5 A, Tj = 125 °C |
dv/dt | 50 | V/ns | |
| Parameter | Symbol | Value | Unit | |
| SPP_B | SPA | |||
| Continuous drain current TC = 25 °C TC = 100 °C |
ID | 4.5 2.8 |
4.51) 2.81) |
A |
| Pulsed drain current, tp limited by Tjmax | ID puls | 9 | 9 | A |
| Avalanche energy, single pulse ID=3.6A, VDD=50V |
EAS | 130 | 130 | mJ |
| Avalanche energy, repetitive tAR limited by Tjmax2) ID=4.5A, VDD=50V |
EAR | 0.4 | 0.4 | |
| Avalanche current, repetitive tAR limited by Tjmax | IAR | 4.5 | 4.5 | A |
| Reverse diode dv/dt IS = 4.5 A, VDS < VDD, di/dt=100A/s, Tjmax=150°C |
dv/dt | 6 | 6 | V/ns |
| Gate source voltage | VGS | ±20 | ±20 | V |
| Gate source voltage AC (f >1Hz) | VGS | ±30 | ±30 | |
| Power dissipation, TC = 25°C | Ptot | 50 | 31 | W |
| Operating and storage temperature | Tj , Tstg | -55...+150 | °C | |
