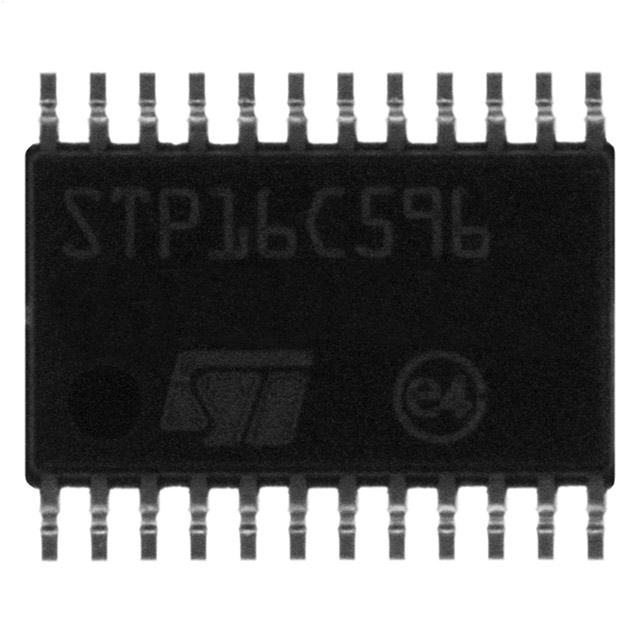

MFG:STMicroelectronics (VA) Category:Integrated Circuits (ICs) Package Cooled:TSSOP24 D/C:06PB
STP16C596XT, STP16C596XTTR, STP16CL596 Datasheet download
Category: Integrated Circuits (ICs)
MFG: STMicroelectronics (VA)
Package Cooled: TSSOP24
D/C: 06PB
Description: IC LED DRIVER LINEAR 24-TSSOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: STP16C596XTTR
File Size: 346358 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STP16C596XTTR
File Size: 346358 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STP16CL596
File Size: 572383 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
| Technical/Catalog Information | STP16C596XTTR |
| Vendor | STMicroelectronics (VA) |
| Category | Integrated Circuits (ICs) |
| Package / Case | 24-TSSOP Exposed Pad, 24-eTSSOP, 24-HTSSOP |
| Packaging | Cut Tape (CT) |
| Current - Output / Channel | 120mA |
| Number of Outputs | 16 |
| Type | Linear (Serial Interface) |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Voltage - Output | 16V |
| Topology | Smart |
| Frequency | 25MHz |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STP16C596XTTR STP16C596XTTR 497 4371 1 ND 49743711ND 497-4371-1 |
The STP16CL596 is a monolithic, low voltage, low current power 16-bit shift register designed for LED panel displays. The STP16CL596 contains a 16-bit serial-in, parallel-out shift register that feeds a 16-bitD-type storage register. In the output stage, sixteen regulated current sources were designed to provide 15-90mA constant current to drive the LEDs.
Compared with the STPIC6C595, the device provides great flexibility and improved performance in LED panel system design.Trough an external resistor, users can adjust the STP16CL596 output current, controlling in this way the light intensity of LEDs.
The STP16CL596 guarantees a 16V output driving capability, allowing users to connect more LEDs in series. The high clock frequency, 25 MHz,also satisfies the system requirement of high volume data transmission. The 3.3V of voltage supply is well useful for applications that interface any micro from 3.3V. Compared with a standard TSSOP package, the TSSOP exposed pad increases heat dissipation capability by a 2.5 factor.
| Symbol | Parameter | Value | Unit |
| VDD | Supply Voltage | 0 to 7 | V |
| VO | Output Voltage | -0.5 to 16 | V |
| IO | Output Current | 90 | mA |
| VI | Input Voltage | -0.4 to VDD+0.4 | V |
| IGND | GND Terminal Current | 1440 | mA |
| fCLK | Clock Frequency | 25 | MHz |
| TOPR | Operating Temperature Range | -40 to +125 | |
| TSTG | Storage Temperature Range | -65 to +150 |
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Under these conditions, functional operation is not implied.
