STP08C596

Features: 8 CONSTANT CURRENT OUTPUT CHANNELS ADJUSTABLE OUTPUT CURRENT THROUGH EXTERNAL RESISTOR SERIAL DATA IN/PARALLEL DATA OUT SERIAL OUT CHANGE STATE ON THE FAILING EDGES OF CLOCK OUTPUT CURRENT: 15-120 mA 25 MHz CLOCK FREQ. AVAILABLE IN HIGH THERMAL TSSOP EXPOSED PAD EFFICIENCY PACKAGEPinoutS...

product image

STP08C596 Picture
See larger image
SeekIC No. : 004508307 Detail

STP08C596: Features: 8 CONSTANT CURRENT OUTPUT CHANNELS ADJUSTABLE OUTPUT CURRENT THROUGH EXTERNAL RESISTOR SERIAL DATA IN/PARALLEL DATA OUT SERIAL OUT CHANGE STATE ON THE FAILING EDGES OF CLOCK OUTPUT CURRENT...

STP08C596 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STP08C596
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 8 CONSTANT CURRENT OUTPUT CHANNELS
ADJUSTABLE OUTPUT CURRENT THROUGH EXTERNAL RESISTOR
SERIAL DATA IN/PARALLEL DATA OUT
SERIAL OUT CHANGE STATE ON THE FAILING EDGES OF CLOCK
OUTPUT CURRENT: 15-120 mA
25 MHz CLOCK FREQ.
AVAILABLE IN HIGH THERMAL TSSOP EXPOSED PAD
EFFICIENCY PACKAGE


Pinout

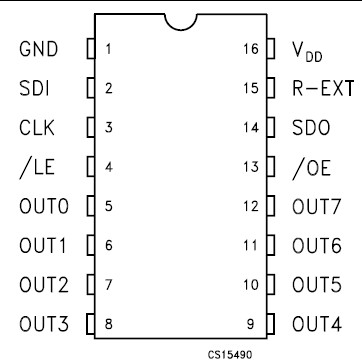

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD Supply Voltage 0 to 7 V
VO Output Voltage -0.5 to 16 V
IO Output Current 120 mA
VI Input Voltage -0.4 to VDD+0.4 V
IGND GND Terminal Current 980 mA
fCLK Clock Frequency 25 MHz
TOPR Operating Temperature Range -40 to +125
TSTG Storage Temperature Range -55 to +150



Description

The STP08C596 is a monolithic, medium-voltage,low current power 8-bit shift register designed for LED panel display. The device contains a 8-bit serial-in, parallel-out shift register that feeds a 8-bitD-type storage register. In the output stage,sixteen regulated current sources were designed to provide 15-120mA constant current to drive the LEDs.

Compared with the STPIC6C595, the device provides great flexibility and improved performance in LED panel system design.Trough an external resistor, users may adjust the STP08C596 output current, controlling in this way the light intensity of LEDs.

The STP08C596 guarantees 16V output driving capability, allowing users to connect more LEDs in series. The high clock frequency, 25 MHz, also satisfies the system requirement of high volume data transmission.
