STPS0530Z, STPS0540Z, STPS0540Z-E Datasheet download
Category: Discrete Semiconductor Products
MFG: STMicroelectronics (VA)
Package Cooled: SOD123
D/C: 08+PB-FREE

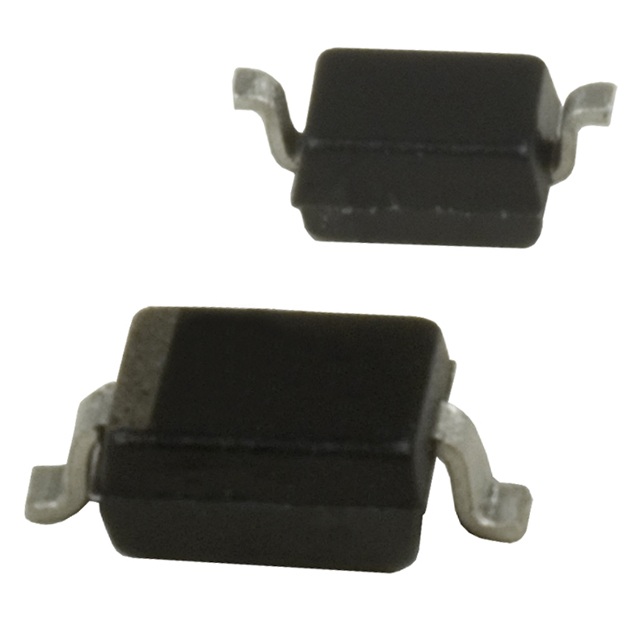

Description: DIODE SCHOTTKY 0.5A 40V SOD-123
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: STPS0530Z
File Size: 234488 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STPS0540Z
File Size: 23444 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STP04CM596B1R
File Size: 412025 KB
Manufacturer: STMicroelectronics
Download : Click here to Download
Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.
Packaged in SOD-123, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. Due to the small size of the package this device fits GSM and PCMCIA requirements.
| Symbol | Parameter | Value | Unit | |
| VRRM | Repetitive peak reverse voltage |
30 | V | |
| IF(RMS) | RMS forward current | 2 | A | |
| IF(AV) | Average forward current =0.5 |
Ta=55°C | 0.5 | A |
| IFSM | Surge non repetitive forward current | tp=10ms sinusoidal |
5.5 | A |
| dV/dt | Critical rate of rise of reverse voltage | 10000 | V/s | |
| Tstg | Storage temperature range | - 65 to + 125 | °C | |
| Tj | Maximum operating junction temperature * | 125 | °C | |
| TL | Maximum temperature for soldering during 10s | 260 | °C | |
| Technical/Catalog Information | STPS0540Z |
| Vendor | STMicroelectronics (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 500mA |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 40A @ 40V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Packaging | Cut Tape (CT) |
| Capacitance @ Vr, F | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STPS0540Z STPS0540Z 497 7538 1 ND 49775381ND 497-7538-1 |
Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.
Packadesin SOD-123, these devicse are intended for use in low voltage, high frequency inverters, free wheeling and polarIty protection applications. Due to the small size of thepackage these devices fit GSMand PCMCIA requirements.
| Symbol | Parameter | Value | Unit | |||
| STPS | ||||||
| 0540Z | 0560Z | |||||
| VRRM | Repetitive peak reverse voltage |
40 | 60 | V | ||
| IF(RMS) | RMS forward current | 2 | A | |||
| IF(AV) | Average forward current =0.5 |
STPS0540Z STPS0560Z |
Ta = 60°C Ta = 40°C |
0.5 | A | |
| IFSM | Surge non repetitive forward current | tp=10ms sinusoidal |
5.5 | A | ||
| dV/dt | Critical rate of rise of reverse voltage | 10000 | V/s | |||
| Tstg | Storage temperature range | - 65 to + 125 | °C | |||
| Tj | Maximum operating junction temperature * | 125 | °C | |||
| TL | Maximum temperature for soldering during 10s | 260 | °C | |||
