STPS1L30M, STPS1L30M1N, STPS1L30U(2.5K/RL) D/C01

Table of contents:
Info of STPS1L30M
Info of STPS1L30M1N
Info of STPS1L30U(2.5K/RL) D/C01

STPS1L30M, STPS1L30M1N, STPS1L30U(2.5K/RL) D/C01 Selling Leads, Datasheet

MFG:STMicroelectronics (VA) Category:Discrete Semiconductor Products Package Cooled:DO-216AA D/C:09+

STPS1L30M, STPS1L30M1N, STPS1L30U(2.5K/RL) D/C01 Datasheet download

Five Points

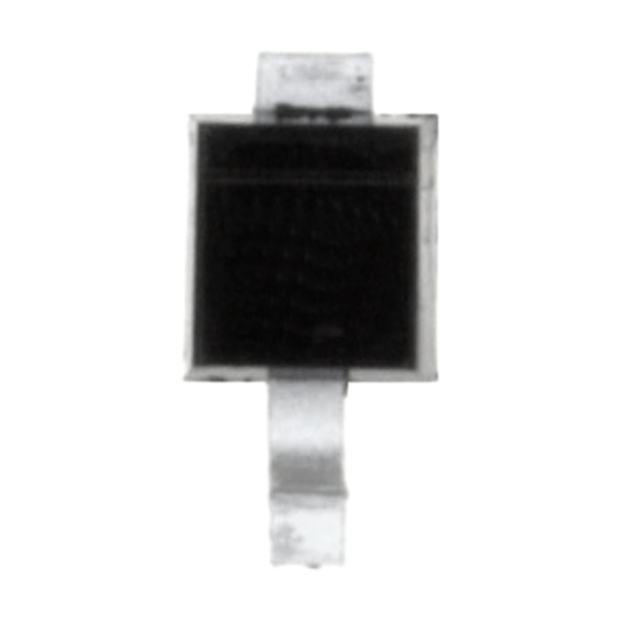

Part Number: STPS1L30M

Category: Discrete Semiconductor Products

MFG: STMicroelectronics (VA)

Package Cooled: DO-216AA

D/C: 09+

Description: DIODE SCHOTTKY LDO 1A 30V STMITE

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

STPS1L30M Parameters

Technical/Catalog Information	STPS1L30M
Vendor	STMicroelectronics (VA)
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	390mV @ 1A
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	390A @ 30V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	DO-216AA, STmite
Packaging	Digi-Reel?
Capacitance @ Vr, F	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STPS1L30M STPS1L30M 497 8025 6 ND 49780256ND 497-8025-6

STPS1L30M General Description

Single Schottky rectifier suited for switch mode power supplies and high frequency DC to DC converters.

Packaged in ST Mite, this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications. Due to the small size of the package this device fits battery powered equipment (cellular, notebook, PDA's, printers) as well chargers and PCMCIA cards.

STPS1L30M Maximum Ratings

Symbol	Parameter		Value	Unit
V_RRM	Repetitive peak reverse voltage		30	V
I_F(RMS)	RMSforward current		2	A
I_F(AV)	Average forward current	T_^c= 140 = 0.5	1	A
I_FSM	Surge non repetitive forward current	tp = 10ms Sinusoidal	50	A
P_ARM	Repetitive peak avalanche power	tp = 1µs Tj = 25°C	1200	w
T_stg	Storage temperaturerange		- 65 to + 150
T_j	Maximumoperating junction temperature *		150
d_^V/dt	Critical rate of rise of reverse voltage (rated Vr, Tj = 25°C)		10000	V/s

STPS1L30M Features

VERY SMALL CONDUCTION LOSSES
NEGLIGIBLE SWITCHING LOSSES
EXTREMELY FAST SWITCHING
LOW FORWARD VOLTAGE DROP FOR HIGHER EFFICIENCY & EXTENDED BATTERY LIFE
LOW THERMAL RESISTANCE
AVALANCHE CAPABILITY SPECIFIED
