STPS3045CP, STPS3045CPI, STPS3045CT

Table of contents:
Info of STPS3045CP
Info of STPS3045CPI
Info of STPS3045CT

STPS3045CP, STPS3045CPI, STPS3045CT Selling Leads, Datasheet

MFG:STMicroelectronics Category:Discrete Semiconductor Products Package Cooled:SOT-93 D/C:08+

STPS3045CP, STPS3045CPI, STPS3045CT Datasheet download

Five Points

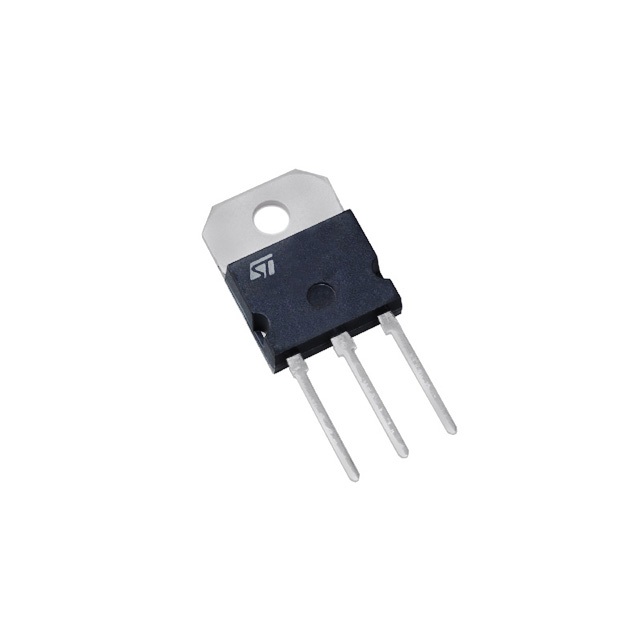

Part Number: STPS3045CP

Category: Discrete Semiconductor Products

MFG: STMicroelectronics

Package Cooled: SOT-93

D/C: 08+

Description: DIODE SCHOTTKY 45V 15A TO-220AB

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

STPS3045CP Parameters

Technical/Catalog Information	STPS3045CP
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Diode Type	Schottky
Diode Configuration	1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io) (per Diode)	15A
Voltage - Forward (Vf) (Max) @ If	570mV @ 15A
Current - Reverse Leakage @ Vr	200A @ 45V
Reverse Recovery Time (trr)	-
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Radial
Package / Case	SOT-93-3
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	STPS3045CP STPS3045CP 497 3215 5 ND 49732155ND 497-3215-5

STPS3045CP General Description

Dual center tap Schottky rectifier suited for SwitchMode Power Supply and high frequency DC to DC converters.

Packaged either in TO-220AB, TO-220FPAB, D²PAK, I²PAK, TO-247, SOT93 or TOP-3I, this device is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

STPS3045CP Maximum Ratings

Symbol	Parameter				Value	Unit
V_RRM	Repetitive peak reverse voltage				45	V
I_F(RMS)	RMS forward current/pin				30	A
I_F(AV)	Average forward current = 0.5	TO-220AB / D2PAK / I2PAK / SOT-93 / TO-247	Tc = 155	Per diode Per device	15 30	A
		TO-220FPAB	Tc = 130
		TOP-3I	Tc = 150
I_FSM	Surge non repetitive forward current		tp = 10 ms Sinusoidal		220	A
I_RRM	Peak repetitive reverse current		tp=2 µs F=1kHz		1	A
I_RSM	Non repetitive peak reverse current		tp = 100 µs square		3	A
P_ARM	Repetitive peak avalanche power		tp = 1µs Tj = 25		6000	W
T_stg	storage temperature range				- 65 to +175
T_j	Maximum operating junction temperature *				175
dV/dt	Critical rate of rise of reverse voltage				10000	V/µs

* :dPtot 1
dTj < (Rth j a-) thermal runaway condition for a diode on its own heatsink

STPS3045CP Features

· VERY SMALL CONDUCTION LOSSES
· NEGLIGIBLE SWITCHING LOSSES
· EXTREMELY FAST SWITCHING
· LOW THERMAL RESISTANCE
· INSULATED PACKAGE: TOP-3I
Insulating voltage = 2500V RMS Capacitance = 12pF
· AVALANCHE CAPABILITY SPECIFIED

STPS3045CPI General Description

STPS3045CPI Maximum Ratings

Symbol	Parameter				Value	Unit
V_RRM	Repetitive peak reverse voltage				45	V
I_F(RMS)	RMS forward current/pin				30	A
I_F(AV)	Average forward current = 0.5	TO-220AB / D2PAK / I2PAK / SOT-93 / TO-247	Tc = 155	Per diode Per device	15 30	A
		TO-220FPAB	Tc = 130
		TOP-3I	Tc = 150
I_FSM	Surge non repetitive forward current		tp = 10 ms Sinusoidal		220	A
I_RRM	Peak repetitive reverse current		tp=2 µs F=1kHz		1	A
I_RSM	Non repetitive peak reverse current		tp = 100 µs square		3	A
P_ARM	Repetitive peak avalanche power		tp = 1µs Tj = 25		6000	W
T_stg	storage temperature range				- 65 to +175
T_j	Maximum operating junction temperature *				175
dV/dt	Critical rate of rise of reverse voltage				10000	V/µs

* :dPtot 1
dTj < (Rth j a-) thermal runaway condition for a diode on its own heatsink

STPS3045CPI Features

STPS3045CT Parameters

Technical/Catalog Information	STPS3045CT
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Diode Type	Schottky
Diode Configuration	1 Pair Common Cathode
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io) (per Diode)	15A
Voltage - Forward (Vf) (Max) @ If	570mV @ 15A
Current - Reverse Leakage @ Vr	200A @ 45V
Reverse Recovery Time (trr)	-
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Radial
Package / Case	TO-220-3 (Straight Leads)
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STPS3045CT STPS3045CT 497 2751 5 ND 49727515ND 497-2751-5

STPS3045CT General Description

STPS3045CT Maximum Ratings

Symbol	Parameter				Value	Unit
V_RRM	Repetitive peak reverse voltage				45	V
I_F(RMS)	RMS forward current/pin				30	A
I_F(AV)	Average forward current = 0.5	TO-220AB / D2PAK / I2PAK / SOT-93 / TO-247	Tc = 155	Per diode Per device	15 30	A
		TO-220FPAB	Tc = 130
		TOP-3I	Tc = 150
I_FSM	Surge non repetitive forward current		tp = 10 ms Sinusoidal		220	A
I_RRM	Peak repetitive reverse current		tp=2 µs F=1kHz		1	A
I_RSM	Non repetitive peak reverse current		tp = 100 µs square		3	A
P_ARM	Repetitive peak avalanche power		tp = 1µs Tj = 25		6000	W
T_stg	storage temperature range				- 65 to +175
T_j	Maximum operating junction temperature *				175
dV/dt	Critical rate of rise of reverse voltage				10000	V/µs

* :dPtot 1
dTj < (Rth j a-) thermal runaway condition for a diode on its own heatsink

STPS3045CT Features
