MFG:Vishay/Semiconductors Category:Sensors, Transducers Package Cooled:NA/ D/C:09+
TCST5123, TCST5133, TCST5250 Datasheet download
Category: Sensors, Transducers
MFG: Vishay/Semiconductors
Package Cooled: NA/
D/C: 09+
Description: SENSR OPTO SLOT 2.7MM TRANS THRU
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TCST5123
File Size: 78577 KB
Manufacturer: VISAY [Vishay Siliconix]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TCS230
File Size: 108589 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TCST5250
File Size: 140589 KB
Manufacturer: VISAY [Vishay Siliconix]
Download : Click here to Download
These devices have a compact construction where the emitting-light sources and the detectors are located face-to-face on the same optical axis. The operating wavelength is 950 nm.
The detector consists of a phototransistor. Due to the special construction, the depth of the gap is equal to a package height of 4 mm.
|
Parameter |
Test Conditions |
Symbol |
Value |
Unit |
| Reverse voltage |
VR |
6 |
V | |
| Forward current |
IF |
60 |
mA | |
| Forward surge current |
tp 10 s |
IFSM |
3 |
A |
| Power dissipation |
Tamb 25 |
PV |
100 |
mW |
| Junction temperature |
Tj |
100 |
· Gap 2.8 mm
· Package height: TCST5123: 4.0 mm
· Plastic polycarbonate housing
· Subminiature construction
· Snap-in mounting mechanisms
· Current Transfer Ratio (CTR) of typical 20%
` Position sensor for shaft encoder,
` Detection of opaque material such as paper, IBM cards, magnetic tapes etc.,
` Limit switch for mechanical motions in VCR,
` General purpose wherever the space is limited

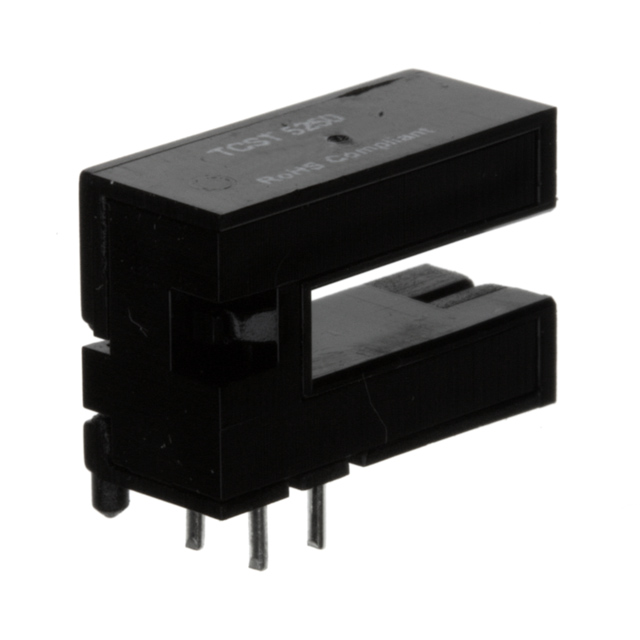

| Technical/Catalog Information | TCST5250 |
| Vendor | Vishay/Semiconductors |
| Category | Sensors, Transducers |
| Sensing Distance | 0.106" (2.7mm) |
| Sensing Method | Transmissive |
| Voltage - Collector Emitter Breakdown (Max) | 70V |
| Current - Collector (Ic) (Max) | 100mA |
| Current - DC Forward (If) | 60mA |
| Output Configuration | Phototransistor |
| Response Time | 15s , 10s <!--10us--> |
| Type | Unamplified |
| Mounting Type | Through Hole, Right Angle |
| Package / Case | PCB Mount |
| Packaging | Tube |
| Operating Temperature | -25°C ~ 85°C |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TCST5250 TCST5250 751 1039 5 ND 75110395ND 751-1039-5 |
|
Parameter |
Test Conditions |
Symbol |
Value |
Unit |
| Reverse voltage |
VR |
6 |
V | |
| Forward current |
IF |
60 |
mA | |
| Forward surge current |
tp 10 s |
IFSM |
3 |
A |
| Power dissipation |
Tamb 25 |
PV |
100 |
mW |
| Junction temperature |
Tj |
100 |
| |
| Collector emitter voltage |
VCEO |
70 |
V | |
| Emitter collector voltage |
VECO |
7 |
V | |
| Collector current |
IC |
100 |
mA | |
| Power dissipation |
|
ICM |
200 |
mW |
| Power dissipation |
Tamb 25 |
PV |
150 |
mW |
| Junction temperature |
Tj |
100 |
||
| Total power dissipation |
Tamb 25 |
Ptot |
250 |
mW |
| Ambient temperature range |
Tamb |
25 to +85 |
||
| Storage temperature range |
Tstg |
40 to +100 |
||
| Soldering temperature |
1.6 mm from case, t 5 s |
Tsd |
260 |
· Gap 2.7 mm
· Package height: 9 mm
· Aperture 0.5 mm
· Plastic polycarbonate housing
· Current Transfer Ratio (CTR) of typical 7.5%
· Designed for horizontal moving objects
` Position sensor for shaft encoder
` Detection of opaque material such as paper,cards, magnetic tapes etc.
` Limit switch for mechanical motions in VCR
` Read/ write head position in data storage equipment
` General purpose wherever the space is limited
