MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:DIP D/C:07+
TPP4000, TPPM0110, TPPM0110DWP Datasheet download
Category: Integrated Circuits (ICs)
MFG: Texas Instruments
Package Cooled: DIP
D/C: 07+
Description: DUAL LDO REGULAT 1.8/3.3 20HSOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TPP
File Size: 279933 KB
Manufacturer: STMicroelectronics
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TPPM0110
File Size: 397312 KB
Manufacturer: TI
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TPP
File Size: 279933 KB
Manufacturer: STMicroelectronics
Download : Click here to Download
The TPPM0110 is a power source intended for use in systems that have a single 5-V input source and require dual, linearly-regulated, low-dropout voltage sources. The outputs must track within 2 V of each other during all conditions and modes of operation. Each output is protected against overcurrent conditions. In the event that one of the outputs is shorted to ground, the other output must maintain a voltage output differential of less than 2 V compared to the output with the abnormal condition.
The 3.3-V ±3% regulated output is capable of driving loads of 1.5 A, and the 1.8-V ±2% regulated output is capable of driving loads of 300 mA under all normal operating conditions. The device is available in a PowerPADTM thermally-enhanced package for efficient heat management, and requires a copper plane to dissipate the heat.
5-V input, V(5VCC) (see Notes 1 and 2). . . . . . . . . . . . . . . . . . . . . . . . 7 V
3.3-V output current limit, IL(3.3VOUT) . . . . . . . . . . . . . . . . . . . . . . 5.4 A
1.8-V output current limit, IL(1.8VOUT). . . . . . . . . . . . . . . . . . . . . . 1.08 A
Continuous power dissipation, PD(see Note 3). . . . . . . . . . . . . . . . 3.8 W
Electrostatic discharge susceptibility, V(HBMESD) . . . . . . . . . . . . . . . . 2 kV
Operating ambient temperature range, TA .. . . . . . . . . . . . . . 0 to 70
Storage temperature range, Tstg. . . . . . . . . . . . . . . . . . . . .-55 to 150
Lead temperature (soldering, 10 sec), T(LEAD) . . . . . . . . . . . . . . . . .260
Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under !recommended operating conditions! is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES:1.All voltage values are with respect to GND.
2.Absolute negative voltage values on these terminals should not be below -0.5 V.
3.Assumed correct thermal management technique implementation and ambient temperature of 25.
| Technical/Catalog Information | TPPM0110DWP |
| Vendor | Texas Instruments |
| Category | Integrated Circuits (ICs) |
| Regulator Type | Multiple Output |

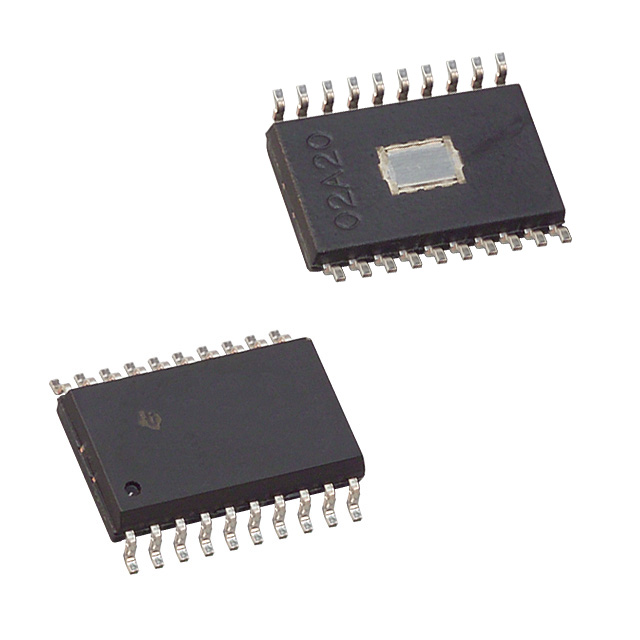

| Package / Case | 20-SOIC (7.5mm Width) Exposed Pad, 20-eSOIC, 20-HSOIC |
| Packaging | Tube |
| Regulator Topology | Positive Fixed |
| Current - Output | 300mA, 1.5A |
| Voltage - Output | 1.8V, 3.3V |
| Operating Temperature | 0°C ~ 55°C |
| Voltage - Input | 4.7 ~ 5.3 V |
| Number of Regulators | 2 |
| Current - Limit (Min) | - |
| Current Short Circuit (Isc) | - |
| Drawing Number | 296; 4147575; DWP; 20, 28 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TPPM0110DWP TPPM0110DWP |
