Features:

 Dual Voltage Output, 3.3 V ±3% and 1.5 V ±2%
 3.3-V Output Within 2 V of 1.5-V Output Under All Conditions
 1.5-A Load Current Capability on 3.3-V Output
 300-mA Load Current Capability on 1.5-V Output
 Overcurrent Protection for Both Outputs
 Thermally-Enhanced Packaging Concept for Efficient Heat Management
 Thermal Shutdown to Protect Device During Excessive Power Dissipation


Pinout

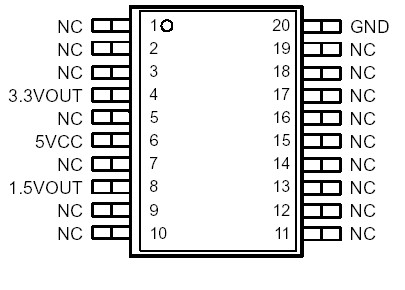

Connection Diagram


Specifications

5-V input, V(5VCC) (see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . . .7 V
3.3-V output current limit, IL(3.3VOUT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.4 A
1.5-V output current limit, IL(1.5VOUT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .1.08 A
Continuous power dissipation, PD (see Note 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 W
Electrostatic discharge susceptibility, V(HBMESD)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 kV
Operating ambient temperature range, TA. . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . 0°C to 70°C
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .55°C to 150°C
Lead temperature (soldering, 10 sec), T(LEAD) . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . . . .260°C


Description

The TPPM0111 is a power source intended for use in systems that have a single 5-V input source and require dual, linearly-regulated, low-dropout voltage sources. The outputs must track within 2 V of each other during all conditions and modes of operation. Each output of TPPM0111 is protected against overcurrent conditions. In the event that one of the outputs is shorted to ground, the other output must maintain a voltage output differential of less than 2 V compared to the output with the abnormal condition.

The 3.3-V ±3% regulated output of TPPM0111 is capable of driving loads of 1.5 A, and the 1.5-V ±2% regulated output is capable of driving loads of 300 mA under all normal operating conditions. The device is available in a PowerPAD thermally-enhanced package for efficient heat management, and requires a copper plane to dissipate the heat.
