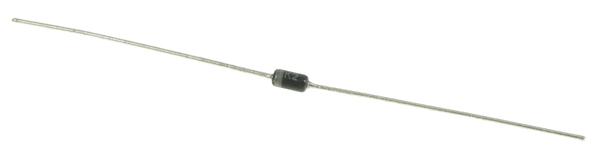

1N486B Product Image

1N4 Series Datasheet download

Five Points

Part Number: 1N486B



MFG: Fairchild



D/C: n/a

Description: Used as a general purpose diode in power supplies, or in clipping and steering applications. Ope...


Urgent Purchase

1N486B General Description


Used as a general purpose diode in power supplies, or in clipping and steering applications.  Operation at temperatures up to 200 degrees C, no derating. Can be used in harsh environments where hermeticity and low cost are important.Compatible with all major automatic pick and place mounting ceramic boards along with high temperature IR equipment.  May be used on  solder reflow.

1N486B Maximum Ratings

  Symbol Value Unit
Average Forward Rectified Current at TAmbient = 25 °C
 		 IAV 0.65 Amp
Maximum Non-Repetitive Surge (8.3 mSecs. 1/2 sine) IFSM 2.0 Amps
Junction Temperature Range Tj -65 to +200 °C
Storage Temperature Range Ts -55 to +200 °C
Max. Average Power Dissipation Pdiss 250 mW

1N486B Features

·Humidity proof glass
·Thermally matched system
·No thermal fatigue
·No applications restrictions
·Sigma BondTM plated contacts
·100% guaranteed solderability
·Problem free assembly
·Six Sigma quality
·LL-35 MiniMELF types available
