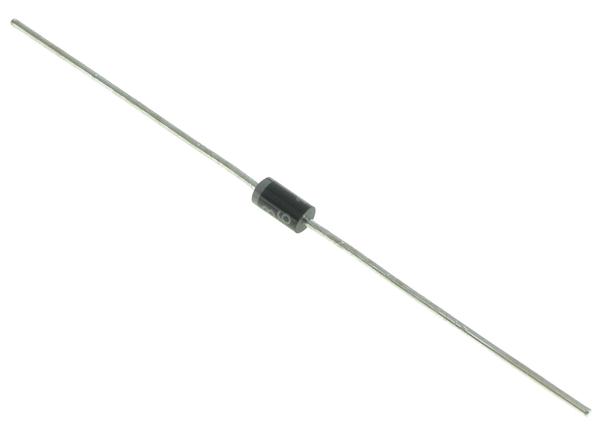

1N5818

Recovery Time :
Maximum Power Dissipation :
Mounting Style : Through Hole
Configuration : Single
Peak Reverse Voltage : 30 V
Packaging : Reel
Product : Schottky Rectifiers
Maximum Reverse Leakage Current : 500 uA
Forward Voltage Drop : 0.55 V
Forward Continuous Current : 1 A
Max Surge Current : 25 A
Operating Temperature Range : - 65 C to + 125 C
Package / Case : DO-41


Features:

• 1N5819-1 AND 1N6761-1AVAILABLE IN JAN,JANTX, JANTXV, AND JANS PER MIL-PRF-19500/586
• 1 AMP SCHOTTKY BARRIER RECTIFIERS
• HERMETICALLY SEALED
• METALLURGICALLY BONDED




Specifications

Operating Temperature:................ -55°C to +125°C
Storage Temperature: ................. -55°C to +150°C
Average Rectified Forward Current: ..1.0 AMP @TL +55°C, L = 3/8"
Derating: ............14 mA / °C above TL = +55°C, L = 3/8"

Product Type	Schottky
Part Number	1N5818
Max Average Rectified Current IO (A)	1
@ Terminal Temperature TT (oC)	90
Peak Repetitive Reverse Voltage VRRM (V)	30
Peak Forward Surge Current IFSM (A)	25
Forward Voltage Drop VF (V)	0.875
@ IF (A)	3
Max Reverse Current IR (mA)	10
@ VR (V)	100
Total Capacitance CT (pF)	110

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing
1N5818	Full Production	RoHS Compliant	$0.075	DO-41	2	TAPE REEL	TBD

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Parameters:

Technical/Catalog Information	1N5818
Vendor	STMicroelectronics (VA)
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	500mV @ 1A
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	500A @ 30V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Axial
Package / Case	DO-41, Axial
Packaging	Cut Tape (CT)
Capacitance @ Vr, F	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	1N5818 1N5818 497 4548 1 ND 49745481ND 497-4548-1
