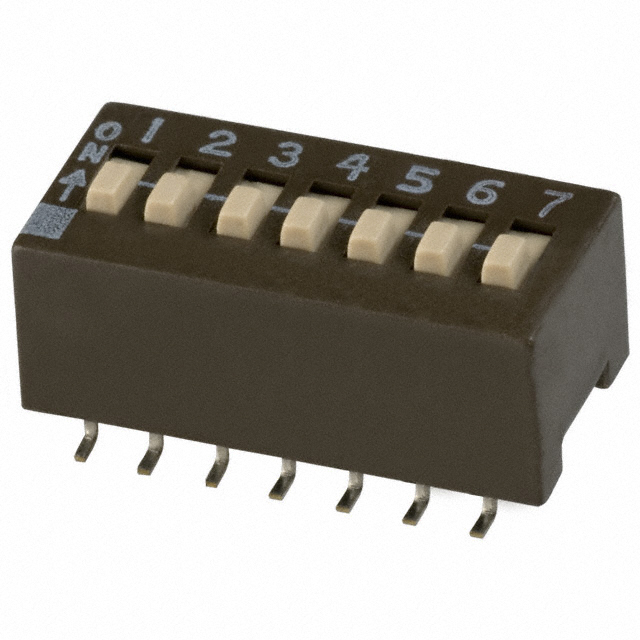

DIP Switches / SIP Switches SPST 7 switch sections
204-7ST: DIP Switches / SIP Switches SPST 7 switch sections
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
| Number of Positions : | 7 | Switch Type : | DIP | ||
| Actuator : | Slide | Terminal Pitch : | 2.54 mm | ||
| Contact Form : | SPST | Termination Style : | SMD/SMT | ||
| Operating Temperature Range : | - 55 C to + 85 C | Packaging : | Tube |
| Technical/Catalog Information | 204-7ST |
| Vendor | CTS Corporation Resistor/Electrocomponents |
| Category | Switches |
| Actuator Type | Standard |
| Orientation | Top Actuated |
| Number of Positions | 7 |
| Circuit | SPST |
| Actuator Level | Raised |
| Mounting Type | Surface Mount |
| Contact Rating @ Voltage | 0.1A @ 50VDC |
| Washable | Yes |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | 204 7ST 2047ST CT2047ST ND CT2047STND CT2047ST |
