Product Details

Description



Features:

• Single supply with operation from 4.5 to 5.5V
• Low power CMOS technology
- 1 mA active current typical
-10µA standby current typical at 5.5V
• Organized as a single block of 256 bytes (256 x 8)
• Hardware write protection for upper half of array
• 2-wire serial interface bus, I2C compatible
• 100 kHz and 400 kHz compatibility
• Page-write buffer for up to 16 bytes
• Self-timed write cycle (including auto-erase)
• Fast 1 mS write cycle time for byte or page mode
• Address lines allow up to eight devices on bus
• 1,000,000 erase/write cycles guaranteed
• ESD protection > 4,000V
• Data retention > 200 years
• 8-pin PDIP, SOIC or TSSOP packages
• Available for extended temperature ranges
- Commercial (C): 0 to +70
- Industrial (I): -40 to +85
- Automotive (E): -40 to +125




Pinout

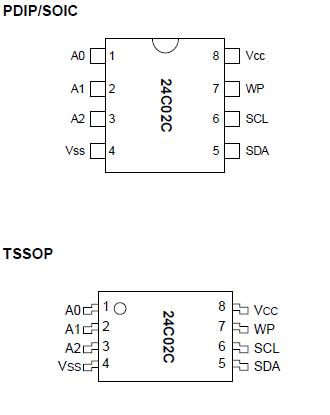

Connection Diagram




Specifications

VCC...................................................................................7.0V
All inputs and outputs w.r.t. VSS ...............-0.6V to VCC +1.0V
Storage temperature ..................................... -65 to +150
Ambient temp. with power applied ................ -65 to +125
Soldering temperature of leads (10 seconds) ............. +300
ESD protection on all pins.................................................4 kV

Parameter Name Value
Density 2K bits (x8)
Max. Clock Freq. 400 kHz
Page Size (bytes) 16
Write Protect Upper Half
Endurance 1,000,000
Op. Volt Range (V) 4.5 to 5.5
Temp Range (°C) -40°C to +125°C





Description

The Microchip Technology Inc. 24C02C is a 2K bit Serial Electrically Erasable PROM with a voltage range of 4.5V to 5.5V. The device is organized as a single block of 256 x 8-bit memory with a 2-wire serial interface. Low current design permits operation with typical standby and active currents of only 10µA and 1 mA respectively. The device 24C02C has a page-write capability forup to 16 bytes of data and has fast write cycle times of only 1 mS for both byte and page writes. Functional address lines allow the connection of up to eight 24C02C devices on the same bus for up to 16K bits of contiguous EEPROM memory. The device is available in the standard 8-pin PDIP, 8-pin SOIC (150 mil), and TSSOP packages.

The Microchip Technology Inc. 24C02C is a 2K bitSerial Electrically Erasable PROM with a voltage rangeof 4.5V to 5.5V. The device is organized as a singleblock of 256 x 8-bit memory with a 2-wire serialinterface. Low-current design permits operation withmax. standby and active currents of only 5 A and 1mA, respectively. The device has a page write capabilityfor up to 16 bytes of data and has fast write cycletimes of only 1 ms for both byte and page writes.Functional address lines allow the connection of up toeight 24C02C devices on the same bus for up to 16Kbits of contiguous EEPROM memory. The device isavailable in the standard 8-pin PDIP, 8-pin SOIC (3.90mm), 8-pin 2x3 DFN and TDFN, 8-pin MSOP andTSSOP packages.
