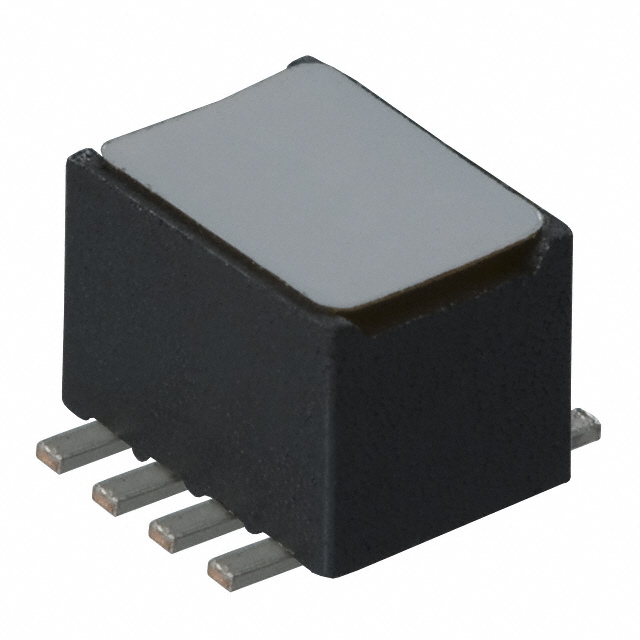

See larger image

SeekIC No. : 003447910 Detail

29F0418-1SR: FERRITE 6A 119 OHM SMD

29F0418-1SR Data Sheet

Get Latest Price

Part Number:: 29F0418-1SR
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

29F0428-0T0-10 evaluate
US $.71 - 1.25 / Piece

EMI/RFI Suppressors & Ferrites 342ohms 100MHz 10A Thru-hole
29F0418-0SR-10 evaluate
US $.56 - .65 / Piece

Signal Conditioning 83ohms 100MHz 6A Thru-hole
29F0330-2SR-10 evaluate
US $.71 - 1.54 / Piece

Signal Conditioning 200ohms 100MHz 9A Thru-hole

Product Details

Quick Details

Series:	-	Manufacturer:	Laird-Signal Integrity Products
Impedance @ Frequency:	119 Ohm @ 100MHz	Current Rating:	6A
High Level Output Current :	- 8 mA	DC Resistance (DCR):	10 mOhm Max
Filter Type:	Differential Mode - 4 Line Array	Package / Case:	8-SMD, Flat Lead
Mounting Type:	Surface Mount	Packaging:	Cut Tape (CT)
Height (Max):	0.190" (4.83mm)

Description

Mounting Type: Surface Mount
DC Resistance (DCR): 10 mOhm Max
Current Rating: 6A
Filter Type: Differential Mode - 4 Line Array
Manufacturer: Laird-Signal Integrity Products
Series: -
Impedance @ Frequency: 119 Ohm @ 100MHz
Package / Case: 8-SMD, Flat Lead
Height (Max): 0.190" (4.83mm)
Size / Dimension: 0.240" L x 0.177" W (6.10mm x 4.50mm)
Packaging: Cut Tape (CT)

Parameters:

Technical/Catalog Information	29F0418-1SR
Vendor	Steward (VA)
Category	Filters
Filter Type	Differential Mode - 4 Line Array
Current Rating	6A
Frequency	100MHz
Impedance	119 Ohm
Number of Lines	4
Package / Case	0.240" L x 0.277" W x 0.190" H (6.10mm x 7.04mm x 4.83mm)
Mounting Type	Surface Mount
Packaging	Digi-Reel?
DC Resistance (DCR)	10.00 mOhm Max
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	29F0418 1SR 29F04181SR 240 1005 6 ND 24010056ND 240-1005-6
