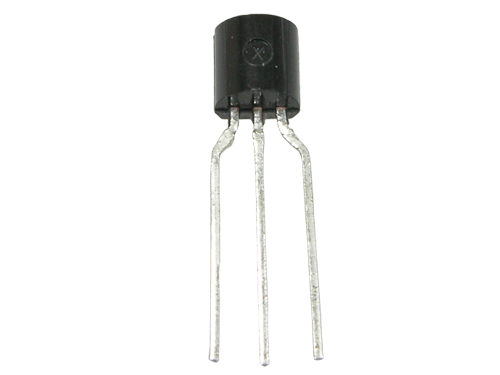

2N3906

Maximum DC Collector Current :
Maximum Operating Temperature :
Configuration : Single
Transistor Polarity : PNP
Mounting Style : Through Hole
Emitter- Base Voltage VEBO : 5 V
Package / Case : TO-92
Maximum Operating Frequency : 250 MHz
DC Collector/Base Gain hfe Min : 100 at 10 mA at 1 V
Collector- Emitter Voltage VCEO Max : 40 V
Packaging : Box


Pinout






Specifications

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
2N3906BU	Full Production	RoHS Compliant	$0.0196	TO-92	3	BULK	TBD	Line 1: 2N Line 2: 3906 Line 3: -&3
2N3906TA	Full Production	RoHS Compliant	$0.0201	TO-92	3	AMMO		Line 1: 2N Line 2: 3906 Line 3: -&3
2N3906TAR	Full Production	RoHS Compliant	$0.0201	TO-92	3	AMMO	TBD	Line 1: 2N Line 2: 3906 Line 3: -&3
2N3906TF	Full Production	RoHS Compliant	$0.0201	TO-92	3	TAPE REEL	TBD	Line 1: 2N Line 2: 3906 Line 3: -&3
2N3906TFR	Full Production	RoHS Compliant	$0.0201	TO-92	3	TAPE REEL	TBD	Line 1: 2N Line 2: 3906 Line 3: -&3
2N3906_D81Z	Not recommended for new designs	RoHS Compliant	N/A	TO-92	3	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) Line 2: 2N Line 3: 3906
2N3906_J05Z	Not recommended for new designs	RoHS Compliant	N/A	TO-92	3	BULK		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) Line 2: 2N Line 3: 3906
2N3906_J61Z	Not recommended for new designs	RoHS Compliant	N/A	TO-92	3	BULK		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) Line 2: 2N Line 3: 3906

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product 2N3906 is available. Click here for more information .

		2N3905, 2N3906
Collector-Emitter-voltage B open	- VCE0	40 V
Collector-Base-voltage E open	- VCE0	40 V
Emitter-Base-voltage C open	- VEB0	5 V
Power dissipation Verlustleistung	Ptot	625 mW 1)
Collector current Kollektorstrom (dc)	- IC	100 mA
Peak collector current Kollektorspitzenstrom	- ICM	200 mA
Junction temp. Sperrschichttemperatur	Tj	150°C
Storage temperature Lagerungstemperatur	TS	- 55.+ 150°C

Description

The 2N3906 is designed as the epitaxial planar PNP transistor device that can be used in general purpose and switching applications. Features of this device are:(1)low leakage current: Icex = -50 nA (max.), Ibl = -50 nA (max.);(2)excellent DC current gain linearity;(3)low saturation voltage: -0.4 V (max.) @ Ic= -50 mA, IB= -5 mA;(4)low collector output capacitance: Cob = 4.5 pF (max.) @ VCB= -5 V;(5)cpmplementary to 2N3904S.

The absolute maximum ratings of the 2N3906 can be summarized as:(1)collector-base voltage: -40 V;(2)collector-emitter voltage: -40 V;(3)emitter-base voltage: -5 V;(4)collector current: -200 mA;(5)base current: -50 mA;(6)collector power dissipation: 350 mW;(7)junction temperature: 150 ;(8)storage temperature range: -55 to +150 . If you want to know more information about the 2N3906, please download the datasheet in www.seekic.com or www.chinaicmart.com .

Parameters:

Technical/Catalog Information	2N3906
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	40V
Current - Collector (Ic) (Max)	200mA
Power - Max	625mW
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Vce Saturation (Max) @ Ib, Ic	400mV @ 5mA, 50mA
Frequency - Transition	250MHz
Current - Collector Cutoff (Max)	-
Mounting Type	Through Hole
Package / Case	TO-92-3 (Straight Leads)
Packaging	Bulk
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2N3906 2N3906 497 2404 ND 4972404ND 497-2404
