Transistors Bipolar (BJT) NPN Gen Pur SS
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Transistor Polarity : | NPN | Collector- Emitter Voltage VCEO Max : | 160 V |
Emitter- Base Voltage VEBO : | 6 V | Maximum DC Collector Current : | 0.6 A |
DC Collector/Base Gain hfe Min : | 80 at 1 mA at 5 V | Configuration : | Single |
Maximum Operating Frequency : | 300 MHz | Maximum Operating Temperature : | + 150 C |
Mounting Style : | Through Hole | Package / Case : | TO-92 |
Packaging : | Box |
Symbol |
Parameter |
Value |
Units |
VCEO |
Collector-Emitter Voltage |
160 |
V |
VCBO |
Collector-Base Voltage |
180 |
V |
VEBO |
Emitter-Base Voltage |
6.0 |
V |
IC |
Collector Current - Continuous |
600 |
mA |
TJ, Tstg |
Operating and Storage Junction Temperature Range |
-55 to +150 |
°C |

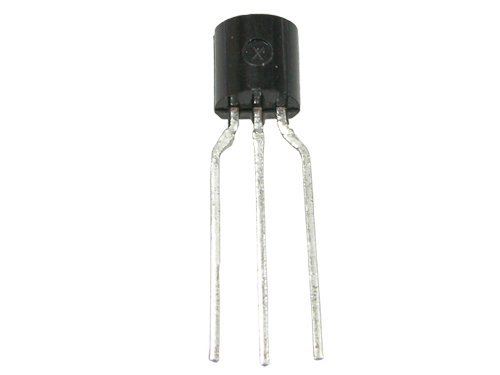

The 2N5551 is a kind of NPN silicon amplifier transistors.
The features of 2N5551 can be summarized as (1)power dissipation verlustleistung: 625 mW; (2)plastic case kunststoffgehause: TO-92(10D3); (3)weight approx. gewicht ca.: 0.18 g; (4)plastic material has UL classification 94V-0 gehausematerial UL94V-0 klassifiziert; (5)standard packaging taped in ammo pack; (6)standard lieferform gegurtet in ammo-pack.
The absolute maximum ratings of 2N5551 are (1)collector-emitter voltag(VCEO):160Vdc; (2)collector-base voltage(VCBO): 180Vdc; (3)emitter-base voltage(VEBO): 6.0 Vdc; (4)collector current -continuous(IC): 600 mAdc; (5)total device dissipation @ TA = 25°C(PD): 625mW; 5.0mW/°C(derate above 25°C); (6)total device dissipation @ TC = 25°C(PD): 1.5Watts; 12mW/°C(derate above 25°C); (7)operating and storage junction temperature range(TJ, Tstg): -55 to +150 °C; (8)thermal resistance, junction to ambient(RJA): 200 °C/W; (9)thermal resistance, junction to case (RJC): 83.3 °C/W.
Technical/Catalog Information | 2N5551 |
Vendor | ON Semiconductor |
Category | Discrete Semiconductor Products |
Transistor Type | NPN |
Voltage - Collector Emitter Breakdown (Max) | 160V |
Current - Collector (Ic) (Max) | 600mA |
Power - Max | 625mW |
DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 10mA, 5V |
Vce Saturation (Max) @ Ib, Ic | 200mV @ 5mA, 50mA |
Frequency - Transition | 300MHz |
Current - Collector Cutoff (Max) | - |
Mounting Type | Through Hole |
Package / Case | TO-92-3, TO-226AA (Straight Leads) |
Packaging | Bulk |
Drawing Number | * |
Lead Free Status | Contains Lead |
RoHS Status | RoHS Non-Compliant |
Other Names | 2N5551 2N5551 2N5551OS ND 2N5551OSND 2N5551OS |
