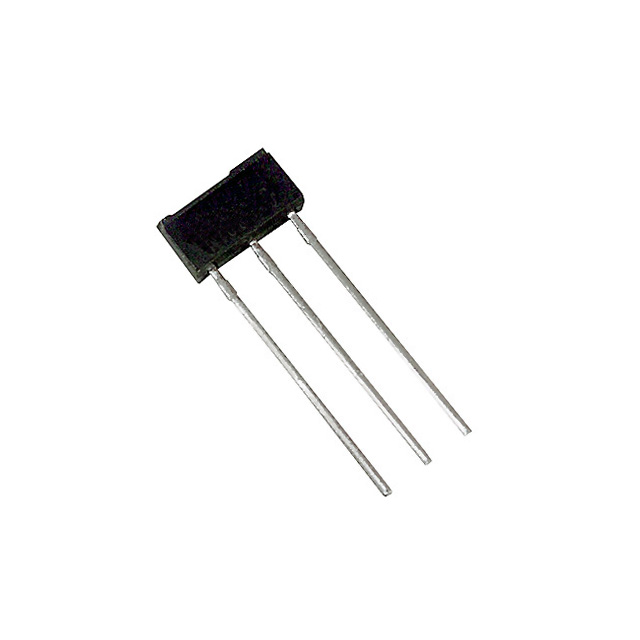

2SB1322A Product Image

2SB Series Datasheet download

Five Points

Part Number: 2SB1322A



MFG: 5000

Package Cooled: Panasonic





Urgent Purchase

2SB1322A Maximum Ratings

Parameter
Symbol
Ratings
Unit

Collector-base voltage
VCBO
-60
V
Collector-emitter voltage
VCEO
-50
V
Emitter-base voltage
VEBO
-5
V
Peak collector current
ICP
-1.5
A
Collector current
Ic
-1
A
Collector power dissipation
PC
1
mW
Junction temperature
Tj
150
°C
Storage temperature
Tstg
-55~ +150
°C
Printed circuit board: Copper foil area of 1cm2 or more, and the board thickness of 1.7mm for the collector portion

2SB1322A Features

· Allowing supply with the radial taping.
