Part Number: 2SB1565E
Description: The 2SB1565E is one of the 2SB1565 series.The 2SB1565E is a power transistor(-60,-3A).Features of the ...
- Table of contents:
2SB1565E
-
Suppliers
DataSheet
General Description
2SB1565E General Description
The 2SB1565E is one of the 2SB1565 series.The 2SB1565E is a power transistor(-60,-3A).Features of the 2SB1565E are:(1)low saturation voltage,typically VCE(sat)=-0.3V at IC/IB=-2A/-0.2A; (2)excellent dc current gain characteristics; (3)wide SOA (safe operating area).
The absolute maximum ratings of the 2SB1565E can be summarized as:(1)collector-to-base voltage:(-)80V; (2)collector-to-emitter voltage:(-)60V; (3)emitter-to-base voltage:(-)7V; (4)collector current(pulse):(-)6A; (5)collector current:(-)3A; (6)collector dissipation:2W;25W(Tc=25); (7)junction temperature:150; (8)storage temperature:-55~150.
The electrical characteristics at TA=25°C of the 2SB1565E can be summarized as:(1)collector-base breakdown voltage:-80V; (2)collector-emitter breakdown voltage:-60V; (3)emitter-base breakdown voltage:-7V; (4)collector cutoff current:-10A; (5)emitter cutoff current:-10A; (6)collector-emitter saturation voltage:-1.5V; (7)base-emitter saturation voltage:-1.5V; (8)dc current transfer ratio:100~320; (9)transition frequency:15MHz; (10)output capacitance:50pF.If you want to know more information such as the electrical AC characteristics ,please download the datasheet in www.seekdatasheet.com .
2SB0621
PDF/DataSheet Download
- Datasheet: 2SB0621
- File Size: 48571 KB
- Manufacturer: PANASONIC [Panasonic Semiconductor]
- Click here to Download
- ·2SB0621A
- PANASONIC [Panasonic Semiconductor]
- Silicon PNP epitaxial planer type
- 48571 KB
- ·2SB0642
- PANASONIC [Panasonic Semiconductor]
- Silicon PNP epitaxial planar type
- 90601 KB
- ·2SB0643
- PANASONIC [Panasonic Semiconductor]
- For low-frequency general amplification
- 74991 KB
- ·2SB0644
- PANASONIC [Panasonic Semiconductor]
- For low-frequency general amplification
- 74991 KB
- ·2SB0709A
- PANASONIC [Panasonic Semiconductor]
- Silicon PNP epitaxial planar type
- 100400 KB
- ·2SB0710
- PANASONIC [Panasonic Semiconductor]
- Silicon PNP epitaxial planer type
- 63683 KB
- ·2SB0710A
- PANASONIC [Panasonic Semiconductor]
- Silicon PNP epitaxial planer type
- 87678 KB
- ·2SB0726
- PANASONIC [Panasonic Semiconductor]
- For general amplification
- 56173 KB
2SB1565E Relative Products
2SB1565
2SB1562
The 2SB1562 features: ·High DC Current Gain-: hFE= 300~1000@ (VCE= -5V , IC= -0.5A)·Low Saturation Voltage-: VCE(sat)= -0.5V(TYP.)@ (IC= -2A, IB= -20mA)

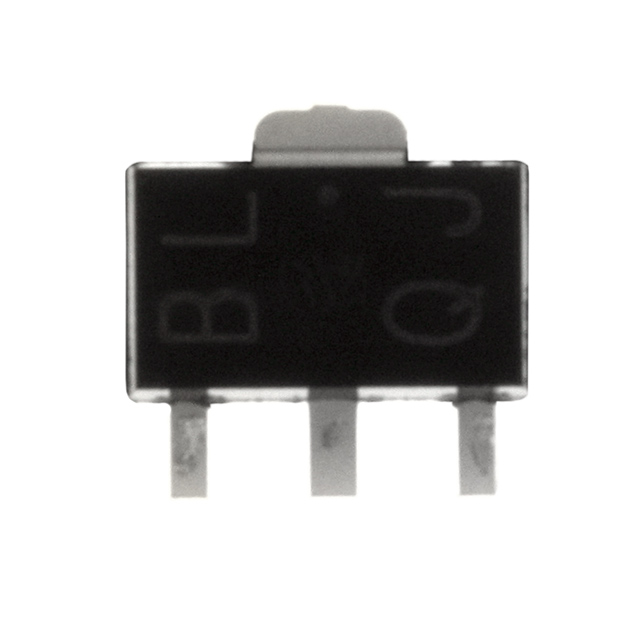

2SB1561T100Q
