2SB1724
-
Suppliers
DataSheet
General Description
2SB1724 Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit | |
| Collector-base voltage (Emitter open) |
2SB1724 |
VCBO |
−60 |
V |
|
2SB1724A |
−80 | |||
| Collector-emitter voltage (Base open) |
2SB1724 |
VCEO |
−60 |
V |
|
2SB1724A |
−80 | |||
| Emitter-base voltage (Collector open) |
VEBO |
−6 |
V | |
| Collector current |
IC |
−3 |
A | |
| Peak collector current |
ICP |
−5 |
A | |
| Collector power dissipation |
PC |
30 |
W | |
|
2.0 | ||||
| Junction temperature |
Tj |
150 |
°C | |
| Storage temperature |
Tstg |
−55 to +150 |
°C | |
2SB1724 Features
• Wide safe operation area
• Satisfactory linearity of forward current transfer ratio hFE
• Low collector-emitter saturation voltage VCE(sat)
• Full-pack package which can be installed to the heat sink with one screw
• Satisfactory linearity of forward current transfer ratio hFE
• Low collector-emitter saturation voltage VCE(sat)
• Full-pack package which can be installed to the heat sink with one screw
2SB1724
PDF/DataSheet Download
- Datasheet: 2SB1724
- File Size: 89931 KB
- Manufacturer: PANASONIC
- Click here to Download
- ·2SB0621
- PANASONIC [Panasonic Semiconductor]
- Silicon PNP epitaxial planer type
- 48571 KB
- ·2SB0621A
- PANASONIC [Panasonic Semiconductor]
- Silicon PNP epitaxial planer type
- 48571 KB
- ·2SB0642
- PANASONIC [Panasonic Semiconductor]
- Silicon PNP epitaxial planar type
- 90601 KB
- ·2SB0643
- PANASONIC [Panasonic Semiconductor]
- For low-frequency general amplification
- 74991 KB
- ·2SB0644
- PANASONIC [Panasonic Semiconductor]
- For low-frequency general amplification
- 74991 KB
- ·2SB0709A
- PANASONIC [Panasonic Semiconductor]
- Silicon PNP epitaxial planar type
- 100400 KB
- ·2SB0710
- PANASONIC [Panasonic Semiconductor]
- Silicon PNP epitaxial planer type
- 63683 KB
- ·2SB0710A
- PANASONIC [Panasonic Semiconductor]
- Silicon PNP epitaxial planer type
- 87678 KB
2SB1724 Relative Products

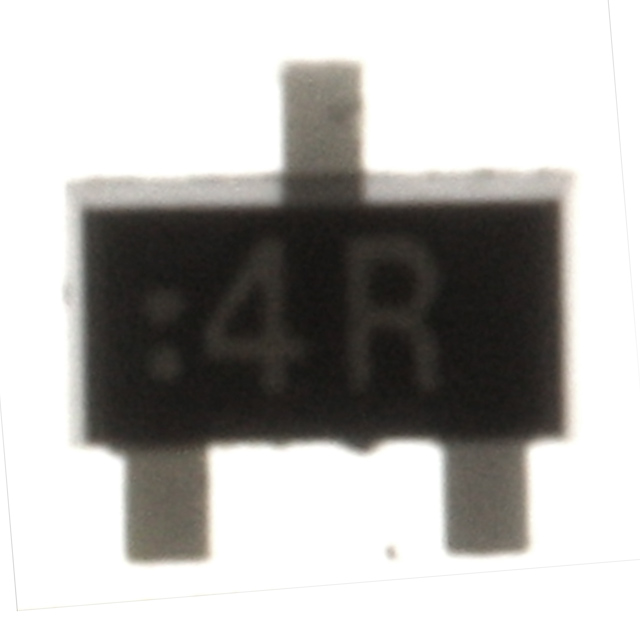

2SB1722J0L
