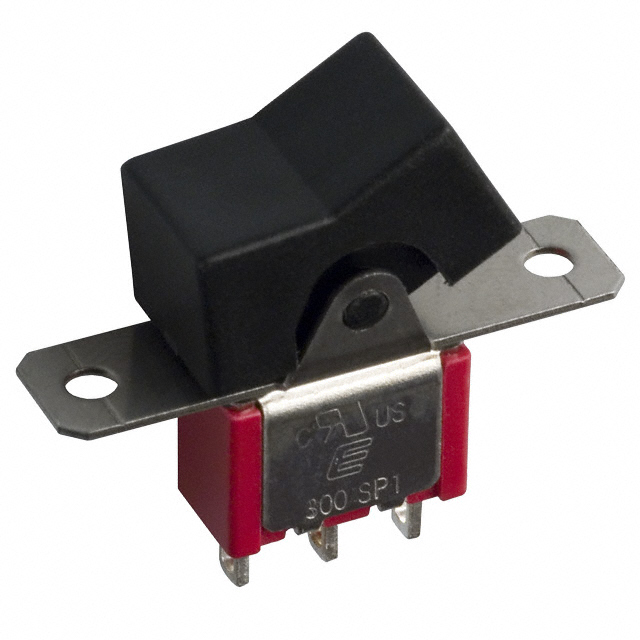

See larger image

SeekIC No. : 004169764 Detail

300SP3R1BLKM1QE: SWITCH ROCKER SPDT 5A 120V

300SP3R1BLKM1QE Data Sheet

US $ 1.13~2.17 / Piece | Get Latest Price

Part Number:: 300SP3R1BLKM1QE
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~250
250~500
500~1000
1000~5000

Unit Price
$2.17
$2.08
$1.82
$1.73
$1.52
$1.47
$1.26
$1.13

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

300S14-U evaluate
US $2.78 - 3.77 / Piece

Transistors Bipolar (BJT) 4 NPN Matched Trans. Array SO-14
300S-15 evaluate
US $28.99 - 48.99 / Piece

IC & Component Sockets 300S-15T02
300S-19 evaluate
US $32.71 - 55.3 / Piece

IC & Component Sockets 300S-19T02

Product Details

Quick Details

Series:	300	Manufacturer:	E-Switch
Data Rate :	3000 Mbps	Circuit:	SPDT
Switch Function:	On-Off-On	Current Rating:	5A (AC/DC)
Voltage Rating - AC:	120V	Voltage Rating - DC:	28V
Actuator Style:	Concave (Standard V)	Color - Actuator/Cap:	Black
Actuator Marking:	No Marking	Illumination Type, Color:	-
Illumination Voltage (Nominal):	-	Mounting Type:	Panel Mount, Flange
Termination Style:	Solder Lug	Ingress Protection:	-
Features:	Epoxy Sealed Terminals	Panel Cutout Dimensions:	Rectangular - 17.96mm x 10.62mm

Description

Color - Actuator/Cap: Black
Actuator Marking: No Marking
Illumination Type, Color: -
Illumination Voltage (Nominal): -
Packaging: Bulk
Ingress Protection: -
Circuit: SPDT
Actuator Style: Concave (Standard V)
Features: Epoxy Sealed Terminals
Termination Style: Solder Lug
Switch Function: On-Off-On
Manufacturer: E-Switch
Series: 300
Current Rating: 5A (AC/DC)
Voltage Rating - AC: 120V
Voltage Rating - DC: 28V
Mounting Type: Panel Mount, Flange
Panel Cutout Dimensions: Rectangular - 17.96mm x 10.62mm

Parameters:

Technical/Catalog Information	300SP3R1BLKM1QE
Vendor	E-Switch
Category	Switches
Mounting Type	Panel Mount, Flange
Circuit	SPDT
Switch Function	On-Off-On
Contact Rating @ Voltage	5A @ 120VAC
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage	-
Termination Style	Solder Lug
Panel Cutout Dimensions	17.96mm x 10.62mm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	300SP3R1BLKM1QE 300SP3R1BLKM1QE EG4307 ND EG4307ND EG4307
