325705B00000G

Heat Sinks BLK HEAT SINK TO-5

product image

325705B00000G Picture
See larger image
SeekIC No. : 002532979 Detail

325705B00000G: Heat Sinks BLK HEAT SINK TO-5

325705B00000G Data Sheet

floor Price/Ceiling Price

US $ .59~.7 / Piece | Get Latest Price
Part Number:
325705B00000G
Mfg:
Aavid Thermalloy
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~2500
  • 2500~5000
  • 5000~10000
  • Unit Price
  • $.7
  • $.67
  • $.63
  • $.59
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/9

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Heatsinks Mounting Style : SMD/SMT
Heatsink Material : Aluminum Fin Style : Radial
Thermal Resistance : 60 C / W Length : 6.35 mm
Height : 6.35 mm Designed for : TO-5

Description

Width :
Product : Heatsinks
Heatsink Material : Aluminum
Mounting Style : SMD/SMT
Fin Style : Radial
Designed for : TO-5
Thermal Resistance : 60 C / W
Length : 6.35 mm
Height : 6.35 mm


Pinout

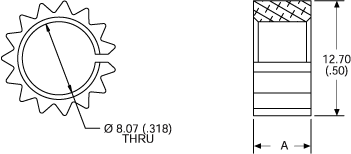

Connection Diagram


Specifications

Part # Description Finish Board Mounting
325705B00000G Extruded collar style heat sink with radial fins Black Anodize N/A



Description

Thermal Resistance 60.00

Thermal resistance value of 325705B00000G is based on a 75C rise in natural convection


Parameters:

Technical/Catalog Information325705B00000G
VendorAavid Thermalloy
CategoryThermal Management
Attachment MethodPress Fit
Height0.25" (6.35mm)
MaterialAluminum
Package CooledTO-5, TO-39
Power Dissipation @ Temperature Rise1W @ 60°C
Thermal Resistance @ Forced Air Flow35°C/W @ 200 LFM
Outline12.70mm Dia
Thermal Resistance @ Natural60°C/W
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 325705B00000G
325705B00000G
