Part Number: 32CTQ...S









Description: The 32CTQ... Schottky rectifier series has been optimized for low reverse leakage at high temperature....


Urgent Purchase

32CTQ...S General Description


The 32CTQ... Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.

32CTQ...S Maximum Ratings

PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum average forward current
See fig. 5		 IF(AV) 50 % duty cycle at TC = 115 , rectangular waveform 30 A
Maximum peak one cycle non-repetitive
surge current
See fig. 7		 IFSM 5 s sine or 3 s rect. pulse Following any rated load
condition and with rated
VRRM applied		 900
10 ms sine or 6 ms rect. pulse 250
Non-repetitive avalanche energy EAS TJ = 25 , IAS = 1.20 A, L = 11.10 mH 13 mJ
Repetitive avalanche current IAR Current decaying linearly to zero in 1 s
Frequency limited by TJ maximum VA = 1.5 x VR typical		 3 A

32CTQ...S Features

• 150 TJ operation
• Low forward voltage drop
• High frequency operation
• High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
• Guard ring for enhanced ruggedness and long term reliability
• Designed and qualified for Q101 level

32CTQ...S datasheet

32C408B
PDF/DataSheet Download

Find 32CTQ...S Suppliers

  • ·32C408BRPFB-20
  • MAXWELL [Maxwell Technologies]
  • 4 Megabit (512K x 8-Bit) SRAM
  • 191811 KB
  • 32C408BRPFB-20 Datasheet Download
  • ·32C408BRPFB-25
  • MAXWELL [Maxwell Technologies]
  • 4 Megabit (512K x 8-Bit) SRAM
  • 191811 KB
  • 32C408BRPFB-25 Datasheet Download
  • ·32C408BRPFB-30
  • MAXWELL [Maxwell Technologies]
  • 4 Megabit (512K x 8-Bit) SRAM
  • 191811 KB
  • 32C408BRPFB-30 Datasheet Download
  • ·32C408BRPFE-20
  • MAXWELL [Maxwell Technologies]
  • 4 Megabit (512K x 8-Bit) SRAM
  • 191811 KB
  • 32C408BRPFE-20 Datasheet Download
  • ·32C408BRPFE-25
  • MAXWELL [Maxwell Technologies]
  • 4 Megabit (512K x 8-Bit) SRAM
  • 191811 KB
  • 32C408BRPFE-25 Datasheet Download
  • ·32C408BRPFE-30
  • MAXWELL [Maxwell Technologies]
  • 4 Megabit (512K x 8-Bit) SRAM
  • 191811 KB
  • 32C408BRPFE-30 Datasheet Download
  • ·32C408BRPFI-20
  • MAXWELL [Maxwell Technologies]
  • 4 Megabit (512K x 8-Bit) SRAM
  • 191811 KB
  • 32C408BRPFI-20 Datasheet Download
  • ·32C408BRPFI-25
  • MAXWELL [Maxwell Technologies]
  • 4 Megabit (512K x 8-Bit) SRAM
  • 191811 KB
  • 32C408BRPFI-25 Datasheet Download

Related Part Number

32CTQ...S Relative Products

  • 32CTQ...PbF

    32CTQ...PbF

    32CTQ...PbF Schottky Rectifier, 2 x 15 A

  • 32CTQ...-1

    32CTQ...-1

    The 32CTQ...-1 Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 junction temperature. Typical applications are in switching power supplies, c...

  • 32CTQ...

    32CTQ...

    32CTQ... Schottky Rectifier, 2 x 15 A

  • 32CTQ

    32CTQ

    The 32CTQ... Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications are in switching power supplies, c...

  • 32C408B

    32C408B

    Maxwell Technologies' 32C408B high-speed 4 Megabit SRAM microcircuit features a greater than 100 krad (Si) total dose tolerance, depending upon space mission. Using RAD-PAK(R) packaging technology, the 32C408B realizes higher density, higher performance and ...

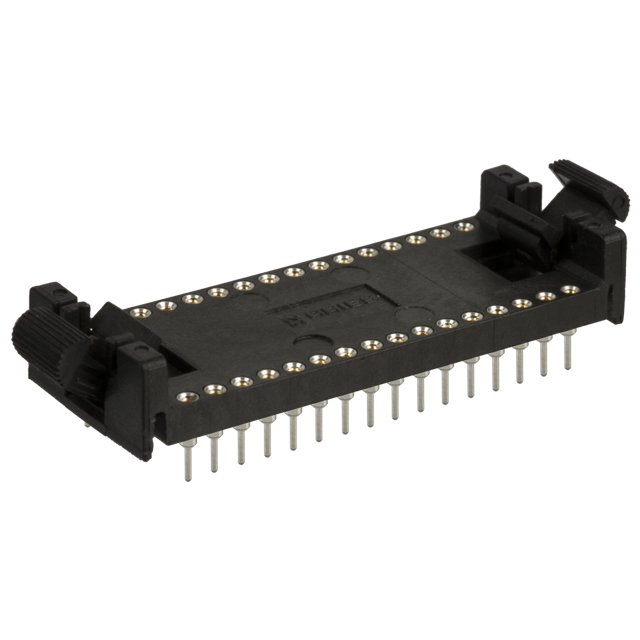

  • 32-C182-10
