33291

Features: • Designed to Operate Over Wide Supply Voltages of 5.5 to 26.5 V• Interfaces to Microprocessor Using 8-Bit SPI I/O Protocol up to 3.0 MHz• 1.0 A Peak Current Outputs with Maximum RDS(on) of 1.6 at TJ - 150°C• Outputs Current Limited to Accommodate In-rush Current...

product image

33291 Picture
See larger image
SeekIC No. : 004228382 Detail

33291: Features: • Designed to Operate Over Wide Supply Voltages of 5.5 to 26.5 V• Interfaces to Microprocessor Using 8-Bit SPI I/O Protocol up to 3.0 MHz• 1.0 A Peak Current Outputs with...

33291 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
33291
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Designed to Operate Over Wide Supply Voltages of 5.5 to 26.5 V
• Interfaces to Microprocessor Using 8-Bit SPI I/O Protocol up to 3.0 MHz
• 1.0 A Peak Current Outputs with Maximum RDS(on) of 1.6 at TJ - 150°C
• Outputs Current Limited to Accommodate In-rush Currents Associated with Switching Incandescent Loads
• Output Voltages Clamped to 53 V During Inductive Switching
• Maximum Sleep Current (IPWR) of 25 A
• Maximum of 4.0 mA IDD During Operation


Pinout

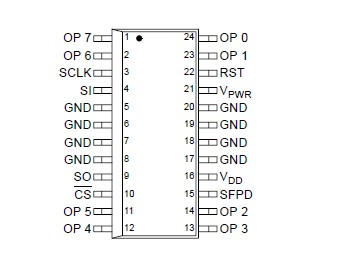

Connection Diagram


Specifications

<%@LANGUAGE="JAVASCRIPT" CODEPAGE="936"%>
Ratings Symbol Value Unit
Power Supply Voltage
  Normal Operation (Steady-State)
  Transient Conditions (Note 1)		 VPWR(SUS)
VPWR(PK)		 - 1.5 to 26.5
- 13 to 60		 V
Logic Supply Voltage (Note 2) VDD - 0.3 to 7.0 V
Input Pin Voltage (Note 3)
 VIN - 0.3 to 7.0 V
Output Clamp Voltage (Note 4)
5.0 mA Iout 0.5 A		 VOUT(OFF) 45 to 65 V
Output Self-Limit Current IOUT(LIM) 1.0 to 3.0 mA
Continuous Per Output Current (Note 5) IOUT(CONT) 500 V
ESD Voltage (Note 6)
   Human Body Model (Note 7)
   Machine Model (Note 8)		 VESD1
VESD2		 2000
200
Output Clamp Energy (Note 9) ECLAMP 50
Recommended Frequency of SPI Operation fSPI 3.0 80
Recommended Frequency of SPI Operation TSTG - 55 to 150 mJ
Operating Case Temperature TC - 40 to 125 MHz
Operating Junction Temperature TJ - 40 to 150 °C
Power Dissipation (TA = 25° C) (Note 10) PD 2.0 W
Soldering Temperature (Note 11) TSOLDER 260 °C
Thermal Resistance (Junction-to-Ambient)
   Case 751E-04 Package
   All Outputs ON (Note 12)
   Single Output ON (Note 13)		 RJA 45 °C/W
