Part Number: 3CN00464AAAA

Category: Other

MFG: Other





Description: 3CN00464AAAA is a kind of Alcatel 1912 AWG (Arrayed Waveguide Grating), which is designed for DWDM systems and belongs to...


Urgent Purchase

3CN00464AAAA General Description


3CN00464AAAA is a kind of Alcatel 1912 AWG (Arrayed Waveguide Grating), which is designed for DWDM systems and belongs to a family of high performance optical routing devices. The component eliminate the cost associated with installing additional fibers, offering an alternative to expensive upgrades. The AWG chip consists of a number of arrayed channel waveguides functioning as diffraction gratings based on SiO2/Si planar technology. The AWG structure provides much narrower wavelength channel spacing in ITU channel allocation, high manufacturability and stability, long-term reliability, much smaller insertion loss, low cross-talk and low per-channel cost compared to other technologies. 3CN00464AAAA is typically used in DWDM transmission, DWDM based add/drop multiplexing, Wavelength-selective routing and Optical signal processing applications.

The Features of 3CN00464AAAA can be summarized as: (1)Narrow and accurate channel spacing; (2)Low, uniform insertion loss; (3)Low cross-talk; (4)Polarization insensitivity; (5)High stability and reliability; (6)Temperature stabilization heater.

The Specifications of 3CN00464AAAA can be summarized as: (1)Number of channel: 16; (2)Channel spacing (f): 100 GHz; (3)Band profile: Flat top; (4)Center Wavelengths (CW): ITU grid nm; (5)Center Wavelength accuracy (CW): ±5 GHz; (6)Free Spectral Range (FSR): 2010 GHz; (7)Min -1dB bandwidth (1dB): 0.24 nm; (8)Min -3dB bandwidth (3dB): 0.48 nm; (9)Max Insertion Loss (IL): 7 dB @ ITU wavelengths; (10)Max Insertion Loss uniformity (IL): 1.5 dB @ ITU wavelengths; (11)Max Polarization sensitivity: 0.03 nm.

The Absolute maximum ratings of 3CN00464AAAA can be summarized as: (1)Operating case temperature: -5 to +70 °C; (2)Storage temperature: -40 to +85 °C.

3CN00464AAAA Connection Diagram

3CN00464AAAA  Connection Diagram

3CN00464AAAA datasheet


PDF/DataSheet Download

Find 3CN00464AAAA Suppliers

  • · EPCS4SI8
  •
  •
  • 226669 KB
  •  EPCS4SI8  Datasheet Download
  • · UTC2411
  •
  •
  • 136508 KB
  •  UTC2411  Datasheet Download
  • ·(M5M410092B)
  • Mitsubishi
  • 3D-RAM
  • 1268750 KB
  • (M5M410092B) Datasheet Download
  • ·_FCQ30A06
  • NIEC [Nihon Inter Electronics Corporation]
  • LOW FORWARD VOLTAGE DROP
  • 29515 KB
  • _FCQ30A06 Datasheet Download
  • ·0001.2501.PT
  •
  • Fuse
  • 40400 KB
  • 0001.2501.PT Datasheet Download
  • ·0001.2501.TR
  •
  • Fuse
  • 40400 KB
  • 0001.2501.TR Datasheet Download
  • ·0001.2502.PT
  •
  • Fuse
  • 40400 KB
  • 0001.2502.PT Datasheet Download
  • ·0001.2502.TR
  •
  • Fuse
  • 40400 KB
  • 0001.2502.TR Datasheet Download

3CN00464AAAA Relative Products

  • 3CJ

    3CJ

    FUSE 3A 600V CERAM BODY CSA

  • 3CIH07

    3CIH07

    FUSE 3A 600V CERAM BODY CSA

  • 3CHS1

    3CHS1

    MODULE POWER ENTRY MED SNAPIN 3A

  • 3CHE1

    3CHE1

    MODULE POWER ENTRY MED FLANGE 3A

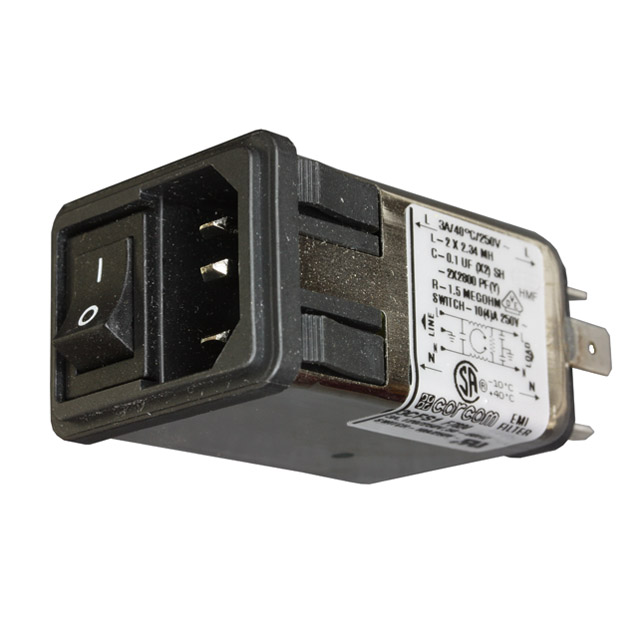

  • 3CFS1

    3CFS1

    MODULE POWER ENTRY SNAP-IN 3A

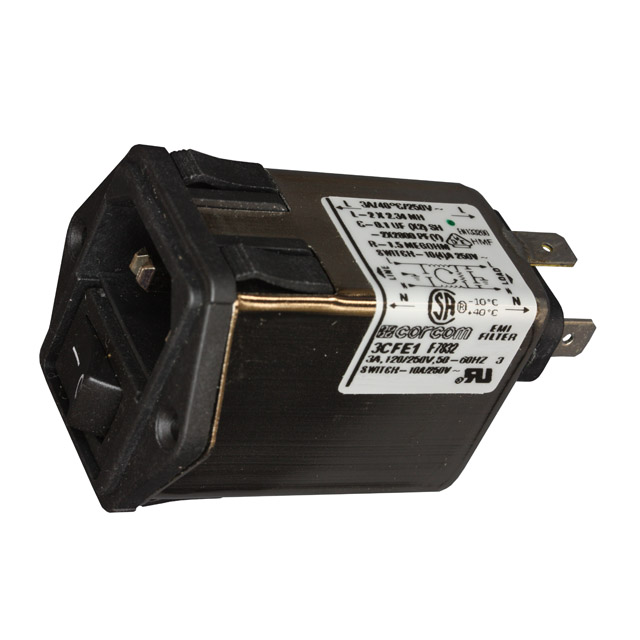

  • 3CFE1
