Product Details

Description

Application

UHF TV tuner RF amplifier

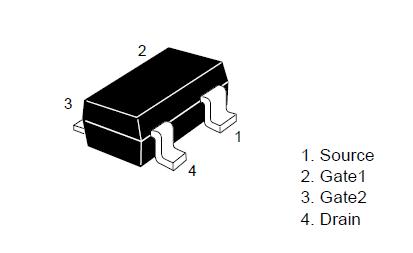

Pinout

Connection Diagram

Specifications

Item	Symbol	Ratings	Unit
Drain to source voltage	V_DS	12	V
Gate 1 to source voltage	V_G1S	±10	V
Gate 2 to source voltage	V_G1S	±10	V
Drain current	I_D	35	mA
Channel power dissipation	P_ch	150	mW
Channel temperature	T_ch	125	°C
Storage temperature	T_stg	55 to +125	°C
