40923

Features: • 0.5 MICRON CMOS Technology• Guaranteed low skew < 700ps (max.)• Low duty cycle distortion < 1ns (max.)• Low CMOS power levels• TTL compatible inputs and outputs• Rail-to-rail output voltage swing• High drive: -24mA IOH, +64mA IOL• T...

product image

40923 Picture
See larger image
SeekIC No. : 004230327 Detail

40923: Features: • 0.5 MICRON CMOS Technology• Guaranteed low skew < 700ps (max.)• Low duty cycle distortion < 1ns (max.)• Low CMOS power levels• TTL compatible inputs a...

40923 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
40923
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 0.5 MICRON CMOS Technology
• Guaranteed low skew < 700ps (max.)
• Low duty cycle distortion < 1ns (max.)
• Low CMOS power levels
• TTL compatible inputs and outputs
• Rail-to-rail output voltage swing
• High drive: -24mA IOH, +64mA IOL
• Two independent output banks with 3-state control
• 1:5 fanout per bank
• "Heartbeat" monitor output
• Available in SSOP and SOIC packages


Pinout

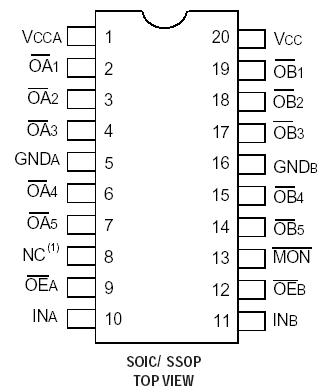

Connection Diagram
NOTE:
1. Pin 8 is not internally connected on devices with a "K" prefix in the date code. On older
devices, pin 8 is internally connected to GND. To insure compatibility with all products,
pin 8 should be connected to GND at the board level.


Specifications

Symbol
Rating
Commercial
& Industrial
Unit
VTERM(2)
Terminal Voltage with Respect to GND
0.5 to +7
V
VTERM(3)
Terminal Voltage with Respect to GND
0.5 to VCC+0.5
V
TSTG
Storage Temperature
65 to +165
°C
IOUT
DC Output Current
60 to +60
mA


NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Input and VCC terminals.
3. Output and I/O terminals.




Description

The FCT806 is an inverting buffer/clock driver built using advanced dual metal CMOS technology. Each bank consists of two banks of drivers. Each bank drives five output buffers from a standard TTL compatible input. These FCT806 feature a "heart-beat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document.

The FCT806 offers low capacitance inputs and hysteresis. Rail-to-rail output swing improves noise margin and allows easy interface with CMOS inputs.
