Features:

• 16 x 16 parallel multiplier with double precision product
• 16ns clocked multiply time
• Low power consumption: 120mA
• Produced with advanced submicron CMOS high performance technology
• IDT7217L requires a single clock with register enables, making pin- and function compatible with AMD Am29517
• Configured for easy array expansion
• User-controlled option for transparent output register mode
• Round control for rounding the MSP
• Input and output directly TTL-compatible
• Three-state output
• Available in PLCC
• Speeds available: L16/20/25/35



Pinout

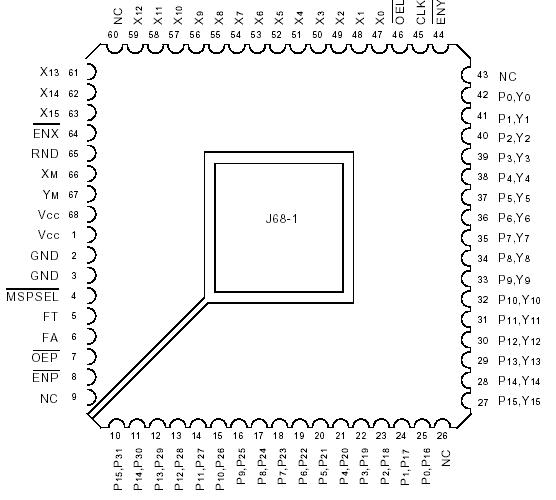

  Connection Diagram


Specifications

Symbol
Description
Max
Unit
VTERM
Power Supply Voltage
0.5 to +7
V
VTERM
Terminal Voltage with Respect to GND
VCC + 0.5
V
VTER(2)
Operating Temperature
0.5 to +7
° C
TBIAS
Temperature Under Bias
55 to +125
° C
TSTG
Storage Temperature
55 to +125
°C
IOUT
DC Output Current
50
mA


NOTE:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum ratingconditions for extended periods may affect reliability.




Description

The IDT7217 is a high-speed, low-power 16 x 16-bit multiplier, ideal for fast, real time digital signal processing applications. Utilization of a modified Booths algorithm and IDT's high-performance, submicron CMOS technology, has achieved speeds comparable to bipolar (20ns max.), at 1/10 the power consumption.

The IDT7217 is ideal for applications requiring high-speed multiplication such as fast Fourier transform analysis, digital filtering, graphic display systems, speech synthesis and recognition and in any system requirement where multiplication speeds of a mini/microcomputer are inadequate. All input registers, as well as LSP and MSP output registers, use the same positive edge-triggered D-type flip-flop.

The IDT7217 has only a single clock input (CLK) and three register enables. ENX and ENY control the two input registers, while ENP controls the entire product. The IDT7217 offers additional flexibility with the FA control and MSPSEL functions. The FA control formats the output for two's complement by shifting the MSP up one bit and then repeating the sign bit in the MSB of the LSP.

The MSPSEL low selects the MSP to be available at the product output port, while a high selects the LSP to be available. Keeping this pin low will ensure compatibility with the TRW MPY016H.
